Allied Machine & Engineering
22421-0050

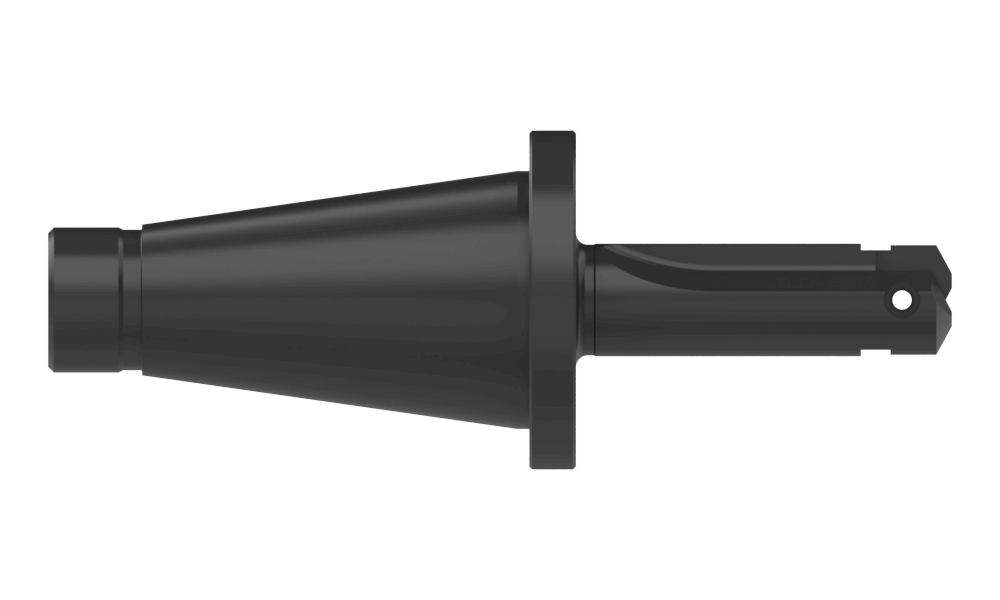

HP/ Universal Holder
Specifications
| Shank Length (Inch) | 5-5/8 |
|---|---|
| Overall Length (Inch) | 10-1/8 |
| Shank Type | NMTB 50 |
| Unit Of Measure | Imperial |
| Type | Replaceable Body |
| Series | B |
| Flute Length (Decimal) | 4 |
| Length (Decimal) | 17.5 |
| Height (Decimal) | 3.5 |
| Width (Decimal) | 3.5 |
| Deep Hole | No |
| HP Reference Length (Fractional) | 5-13/32 |
| Length Type | Short |
| Maximum Diameter (Fractional) | 1-3/4 |
| Minimum Diameter (Fractional) | 1-1/4 |
| Base Item Number | 22421-0050 |
| Flute Type | Straight |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Width | 3.5 |
| Minimum Diameter (Inch) | 1-1/4 |
| Length | 17.5 |
| Flute Length (Inch) | 4 |
| Country of Origin | US |
