Allied Machine & Engineering
335E02812A21M

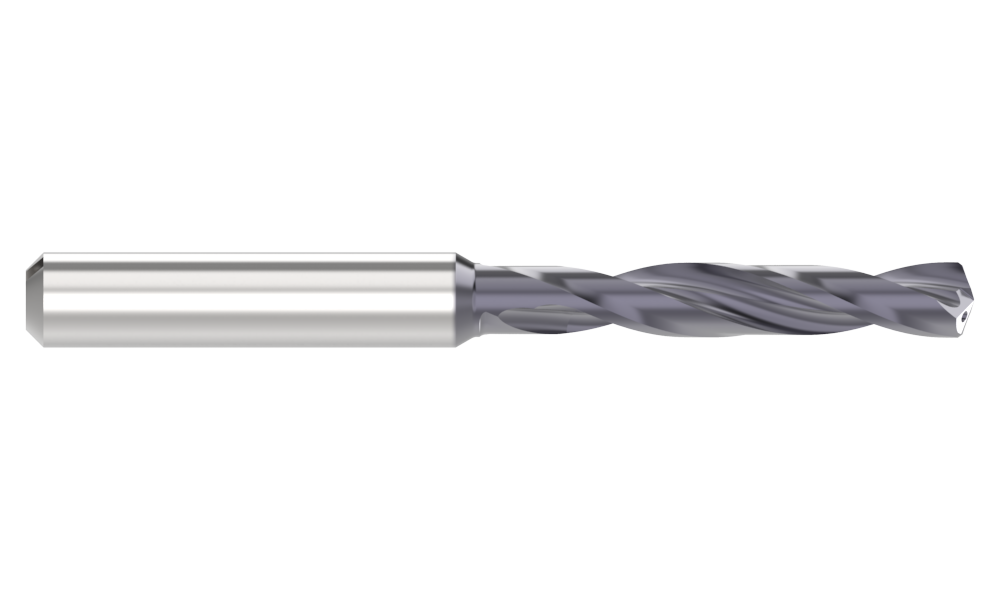

ASC 320 Solid Carbide Drill
Specifications
| Diameter (Metric) | 7.14 |
|---|---|
| Overall Length (Inch) | 3.13 |
| Coolant Fed | Yes |
| Overall Length (Metric) | 79.4 |
| Material | Carbide |
| Diameter (Inch) | 9/32 |
| Shank Size (Metric) | 8 |
| Unit Of Measure | Imperial |
| Flute Type | Helical |
| Overall Length | 0.79 Inch |
| Length to Diameter Ratio | 3.5XD |
| Maximum Drilling Depth (Decimal) | 1.1 |
| Maximum Drilling Depth (Metric) | 28 |
| Shank Length (Metric) | 36 |
| Width (Decimal) | 0.79 |
| Shank Type | Cylindrical |
| Shank Length (mm) | 36 |
| Grade | Carbide |
| Base Item Number | 335E02812A21M |
| Length | 0.79 |
| Length To Diameter Ratio | 3.5XD |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Coolant | Yes |
| Overall Length (Decimal Inch) | 0.787 |
| Width | 0.787 |
| Length Type | 3.5xD |
| Drill Depth (Inch) | 1.102 |
| Country of Origin | US |
