Allied Machine & Engineering
335E07344A21M

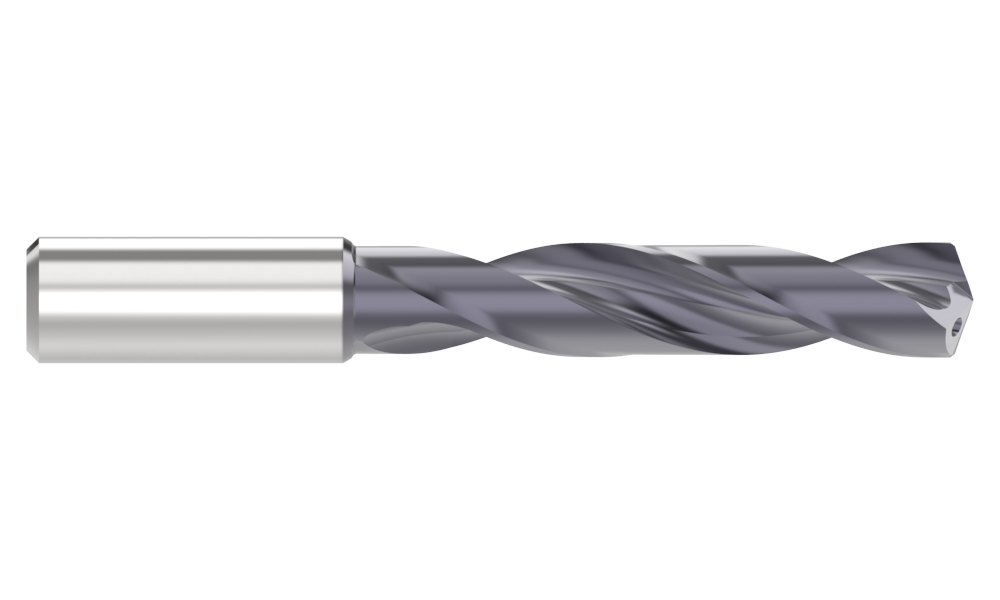

ASC 320 Solid Carbide Drill
Specifications
| Diameter (Metric) | 18.65 |
|---|---|
| Overall Length (Inch) | 6.07 |
| Coolant Fed | Yes |
| Overall Length (Metric) | 149.5 |
| Material | Carbide |
| Diameter (Inch) | 47/64 |
| Shank Size (Metric) | 20 |
| Unit Of Measure | Imperial |
| Flute Type | Helical |
| Overall Length | 5.89 Inch |
| Length to Diameter Ratio | 3.5XD |
| Height (Decimal) | 1.02 |
| Maximum Drilling Depth (Decimal) | 2.76 |
| Maximum Drilling Depth (Metric) | 70 |
| Shank Length (Metric) | 50 |
| Width (Decimal) | 1.02 |
| Shank Type | Cylindrical |
| Shank Length (mm) | 50 |
| Grade | Carbide |
| Base Item Number | 335E07344A21M |
| Length | 6.07 |
| Length To Diameter Ratio | 3.5XD |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Coolant | Yes |
| Overall Length (Decimal Inch) | 5.89 |
| Width | 1.024 |
| Length Type | 3.5xD |
| Drill Depth (Inch) | 2.756 |
| Country of Origin | US |
