Allied Machine & Engineering
360E01875A21M

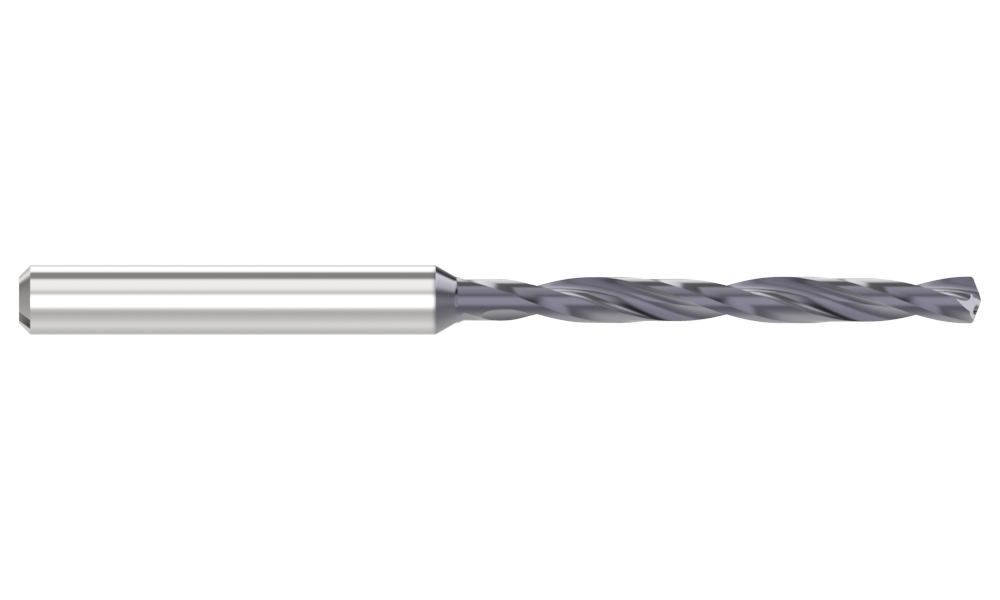

ASC 320 Solid Carbide Drill
Specifications
| Overall Length (Inch) | 3.27 |
|---|---|
| Shank Type | Cylindrical |
| Coolant | Yes |
| Overall Length (Decimal Inch) | 3.27 |
| Overall Length (mm) | 8.31 cm |
| Flute Type | Helical |
| Width | 0.787 |
| Maximum Drilling Depth (Metric) | 36 |
| Length Type | 6xD |
| Grade | Carbide |
| Shank Length (mm) | 36 |
| Diameter (Inch) | 0.1875 |
| Length | 4.27 |
| Shank Diameter (mm) | 6.00 mm |
| Drill Depth (Inch) | 1.1417 |
| Country of Origin | US |
