Allied Machine & Engineering

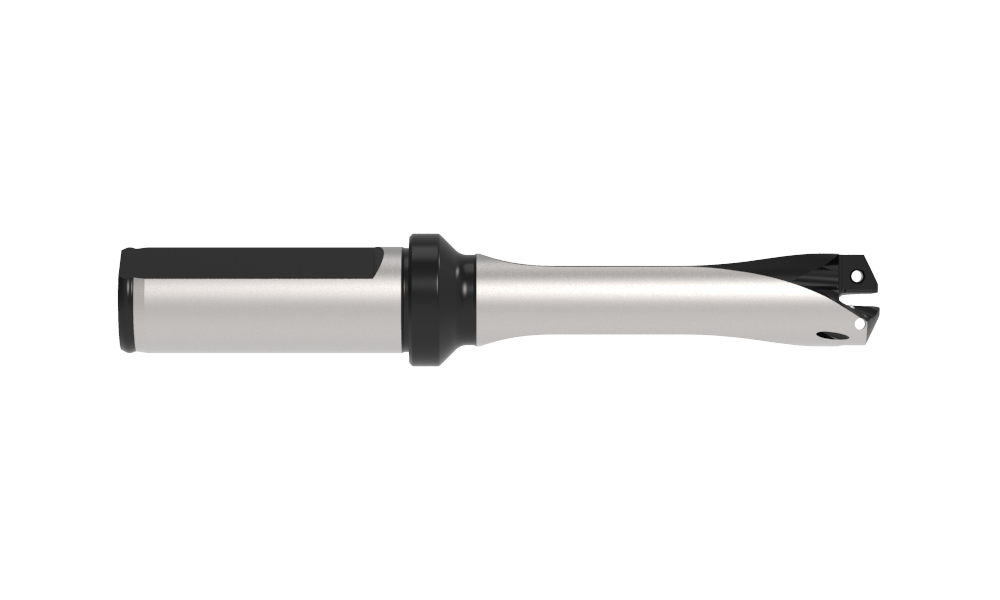

HXT0317S-20FM
GEN3SYS XT Pro Holder
Specifications
| Overall Length (Metric) | 136.9 |
|---|---|
| Drill Depth (Metric) | 54 |
| Shank Length (Metric) | 50 |
| Shank Type | Flanged |
| Unit Of Measure | Metric |
| Type | Replaceable Body |
| Shank Size | 20 mm |
| Series | 17 |
| Length (Decimal) | 6.39 |
| Height (Decimal) | 1 |
| Width (Decimal) | 1 |
| Body Length (Decimal) | 3.31 |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Flat | Yes |
| Length Type | 3 X D |
| Maximum Diameter (Decimal) | 0.71 |
| Maximum Diameter (Metric) | 17.99 |
| Minimum Diameter (Metric) | 17 |
| Minimum Diameter (Decimal) | 0.67 |
| Tool Reference Length (Metric) | 86.9 |
| Base Item Number | HXT0317S-20FM |
| Body Length (Inch) | 3.31 |
| Flute Type | Straight |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Width | 1 |
| Minimum Diameter (Inch) | 0.6693 |
| Shank Length (mm) | 50 |
| Length | 6.39 |
| Shank Diameter (mm) | 2.00 cm |
| Country of Origin | US |
