Allied Machine & Engineering

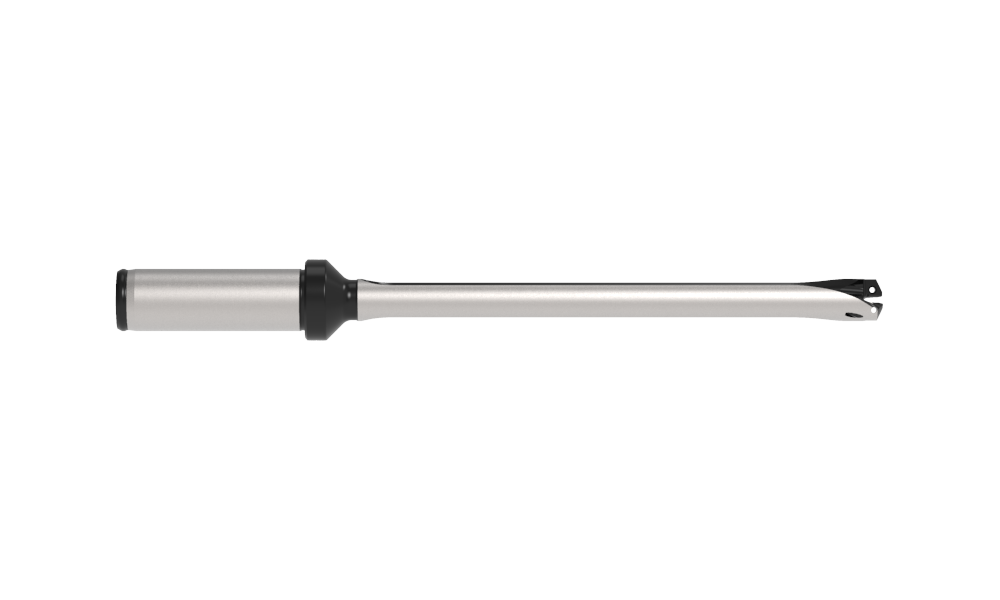

HXT1011S-063C
GEN3SYS XT Pro Holder
Specifications
| Drill Depth (Inch) | 4-23/32 |
|---|---|
| Shank Length (Inch) | 1-7/8 |
| Overall Length (Inch) | 7-23/32 |
| Shank Type | Flanged |
| Unit Of Measure | Fractional |
| Type | Replaceable Body |
| Shank Size | 5/8 Inch |
| Series | 11 |
| Length (Decimal) | 8.72 |
| Height (Decimal) | 0.81 |
| Width (Decimal) | 0.81 |
| Body Length (Decimal) | 5.76 |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | Yes |
| Flat | No |
| Length Type | 10 X D |
| Maximum Diameter (Decimal) | 0.47 |
| Maximum Diameter (Metric) | 11.99 |
| Minimum Diameter (Metric) | 11 |
| Minimum Diameter (Decimal) | 0.43 |
| Tool Reference Length (Fractional) | 5-27/32 |
| Base Item Number | HXT1011S-063C |
| Body Length (Inch) | 5.76 |
| Flute Type | Straight |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Shank Diameter (Inch) | 5/8 |
| Width | 0.813 |
| Minimum Diameter (Inch) | 0.4331 |
| Length | 8.72 |
| Country of Origin | US |
