Allied Machine & Engineering

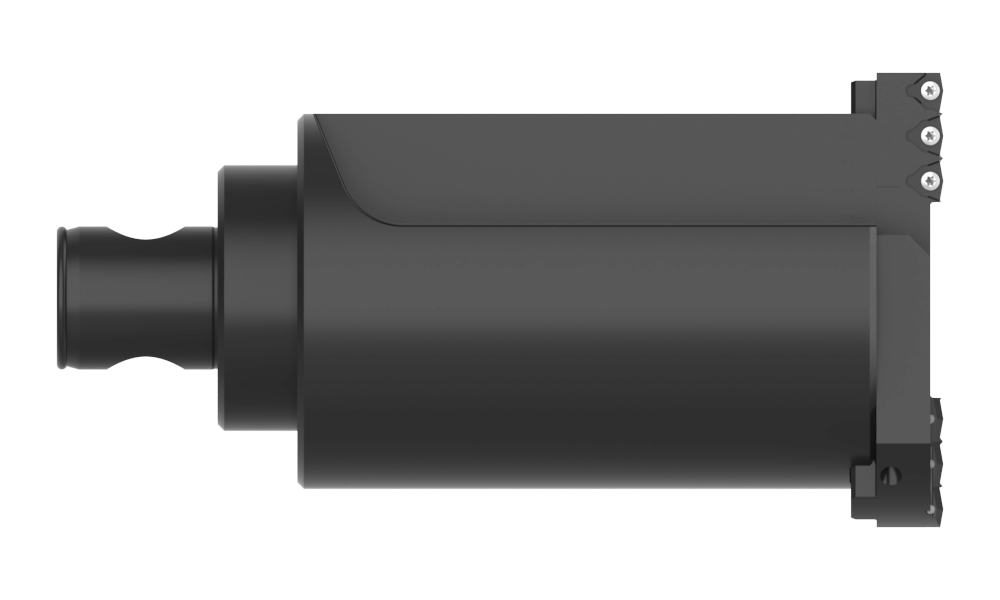

OP4-1S-ABS63
Opening Drill Holder
Specifications
| Drill Depth (Inch) | 5-1/64 |
|---|---|
| Through Coolant | Yes |
| Shank Type | ABS 63 |
| Unit Of Measure | Fractional |
| Series | OP4 |
| Coolant Inlet Style Rear | Through The Shank |
| Gage Length (Fractional) | 6-3/4 |
| Length Type | Short |
| Maximum Diameter (Decimal) | 5.62 |
| Minimum Diameter (Decimal) | 4.12 |
| Number Of Inserts | 6 |
| Base Item Number | OP4-1S-ABS63 |
| Flute Type | Straight |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| Coolant | Yes |
| Width | 0 |
| Minimum Diameter (Inch) | 4.12 |
| Length | 0 |
| Gage Length (Inch) | 6-3/4 |
| Country of Origin | US |
