Bessey
STB12

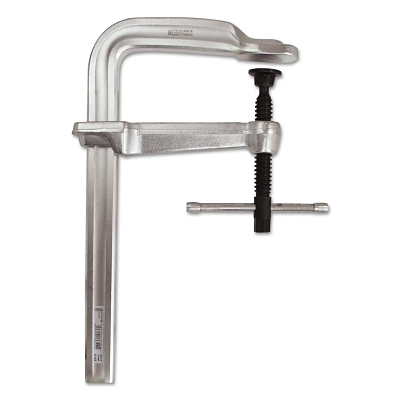

BESSEY Heavy-Duty L-Clamps
Specifications
| Long Description | Spatter-resistant|Drop-forged steel for long service life|Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life|The high-strength sliding pin T-Handle is sized according to the clamps capability| |
|---|---|
| Short Description | Heavy-Duty L-Clamps, 12 in Cap., 7 in Throat, 4,880 lb Load |
| Nominal Throat Depth | 7 in |
| Spindle Material | High Carbon Steel |
| Material | Steel |
| Opening Size Max | 12 in |
| ORS Nasco SKU Number | 013-STB12 |
| Classification | L-Clamps |
| Body Material | Steel |
| Prop 65 Warning Label | N |
| Style | Heavy-Duty |
| Handle Type | Sliding Pin T-Handle |
| Spindle Diameter | 0.85 in |
| Handle Material | Tempered Steel |
| Handle Finish | Electro-Galvanized |
| Bar Thickness | 1 37/64 in |
| Bar Width | 25/32 in |
| Load Capacity Nominal | 4,880 lb |
| Prop 65 Warning Required | N |
| Country of Origin | DE |
| Nominal Capacity | 12 in |
| Locking Type | Thread Locking |
