Brush Research Manufacturing
BC122500CCBN

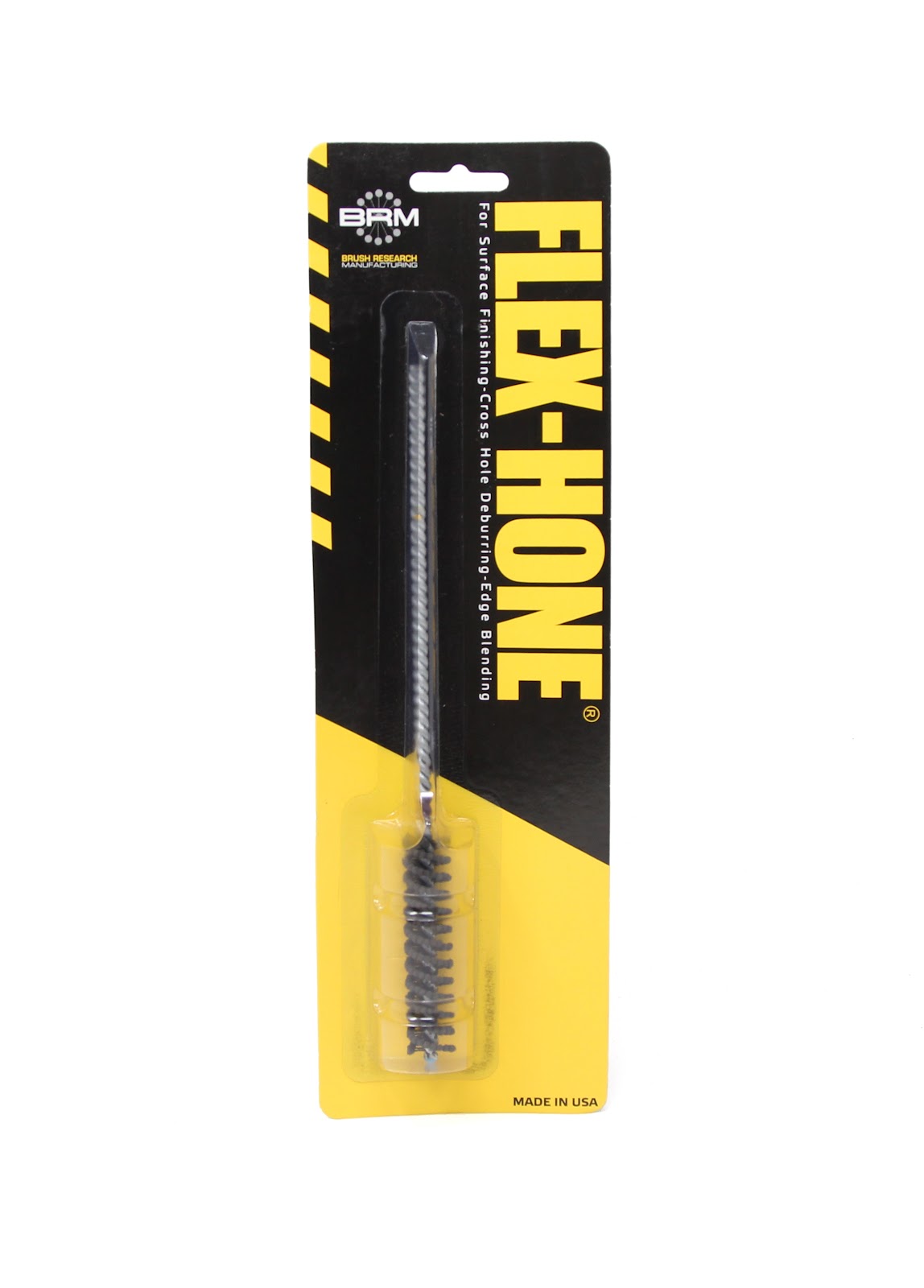

BRM BC122500CCBN FLEX-HONE®, 0.500" (12.7mm) Bore, 8" OAL, 2500 Mesh Grit, Cubic Boron Nitride
Specifications
| Short Description | The BC122500CCBN FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.473" and 0.500". Featuring 2.50" of abrasive globules which are composed of 2500 Mesh grit Cubic Boron Nitride (CCBN). Excellent for High nickel alloy steels. 2500 Mesh grit generally provides an Ra Finish range of 3 - 10 Microinch (.05 - .2 Micrometer). |
|---|---|
| Ra Range | 3 - 10 Microinch (.05 - .2 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 12.7 |
| Stem Diameter (Inch) | 0.168 |
| Tip Marking | Light Blue |
| Item Weight (lbs) | 0.0798 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Cubic Boron Nitride |
| Abrasive Part (Inch) | 2.50 |
| GTIN | 843469118226 |
| Item Length (Inches) | 12 |
| Stem Marking | Purple |
| Maximum Bore Diameter (Inch) | 0.500 |
| Recommended RPM | 900 - 1000 |
| Minimum Bore Diameter (Inch) | 0.473 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.500 |
| Applicable Materials | High nickel alloy steels |
| Grit | 2500 Mesh |
| UPC Number | 843469118226 |
| Overall Length (Inch) | 8 |
