Brush Research Manufacturing
BC12800CD

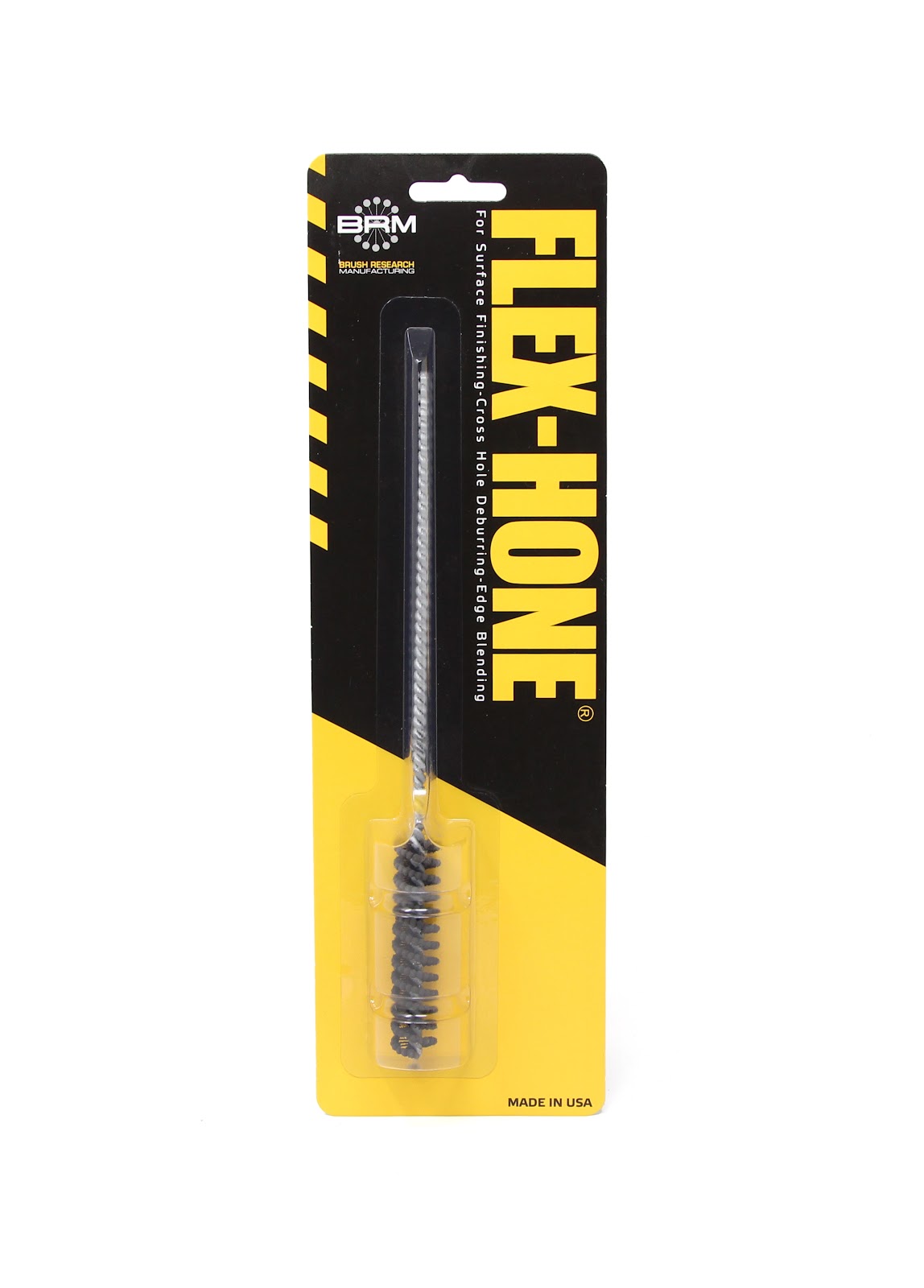

BRM BC12800CD FLEX-HONE®, 0.500" (12.7mm) Bore, 8" OAL, 800 Mesh Grit, Diamond (CD)
Specifications
| Short Description | The BC12800CD FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.473" and 0.500". Featuring 2.50" of abrasive globules which are composed of 800 Mesh grit Diamond (CD). Excellent for Carbide, ceramic, hardened tool steel and heat treated steel. 800 Mesh grit generally provides an Ra Finish range of 10 - 20 Microinch (.3 - .6 Micrometer). |
|---|---|
| Ra Range | 10 - 20 Microinch (.3 - .6 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 12.7 |
| Stem Diameter (Inch) | 0.168 |
| Tip Marking | Yellow |
| Item Weight (lbs) | 0.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Diamond |
| Abrasive Part (Inch) | 2.50 |
| GTIN | 843469118486 |
| Item Length (Inches) | 12 |
| Stem Marking | Yellow |
| Maximum Bore Diameter (Inch) | 0.500 |
| Recommended RPM | 900 - 1000 |
| Minimum Bore Diameter (Inch) | 0.473 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.500 |
| Applicable Materials | Carbide, ceramic, hardened tool steel and heat treated steel |
| Grit | 800 Mesh |
| UPC Number | 843469118486 |
| Overall Length (Inch) | 8 |
