Brush Research Manufacturing
BC20080Z25

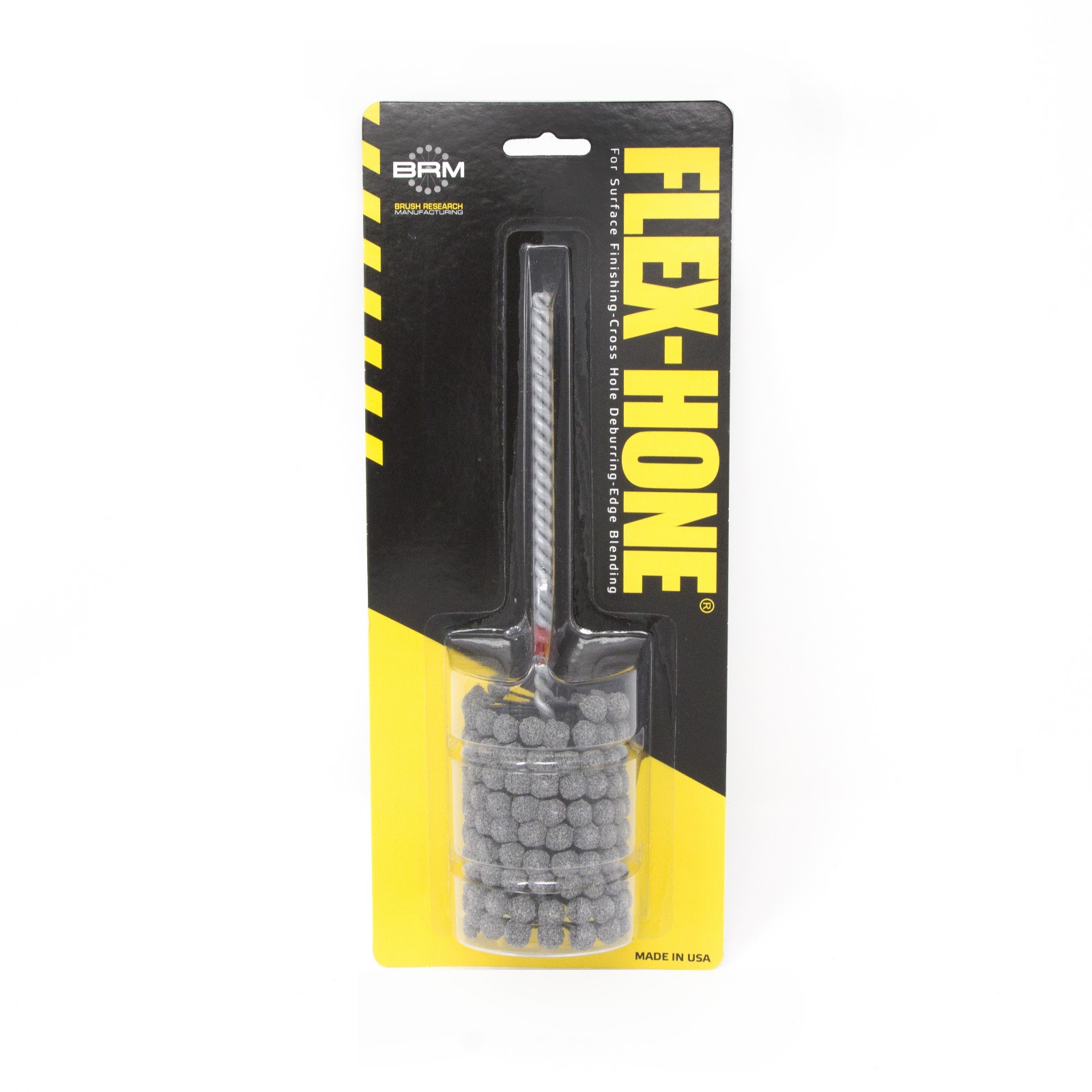

BRM BC20080Z25 FLEX-HONE®, 2.000" (50.8mm) Bore, 8" OAL, 80 Grit, Zirconia Alumina #1525 (Z25)
Specifications
| Short Description | The BC20080Z25 FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 1.876" and 2.000". Featuring 3.00" of abrasive globules which are composed of 80 grit Zirconia Alumina #1525 (Z25). Excellent for Low carbon to medium carbon steels, stainless steel and cast iron. 80 grit generally provides an Ra Finish range of 45 - 64 Microinch (1.2 - 1.6 Micrometer). |
|---|---|
| Ra Range | 45 - 64 Microinch (1.2 - 1.6 Micrometer) |
| Item Width (Inches) | 5 |
| Bore Diameter (Metric) | 50.8 |
| Stem Diameter (Inch) | 0.245 |
| Tip Marking | Orange |
| Item Weight (lbs) | 0.31 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 3 |
| Abrasive Type | Zirconia Alumina #1525 |
| Abrasive Part (Inch) | 3.00 |
| GTIN | 843469122773 |
| Item Length (Inches) | 12 |
| Stem Marking | Red |
| Maximum Bore Diameter (Inch) | 2.000 |
| Recommended RPM | 600 - 900 |
| Minimum Bore Diameter (Inch) | 1.876 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 2.000 |
| Applicable Materials | Low carbon to medium carbon steels, stainless steel and cast iron |
| Grit | 80 |
| UPC Number | 843469122773 |
| Overall Length (Inch) | 8 |
