Brush Research Manufacturing
BC23460BC

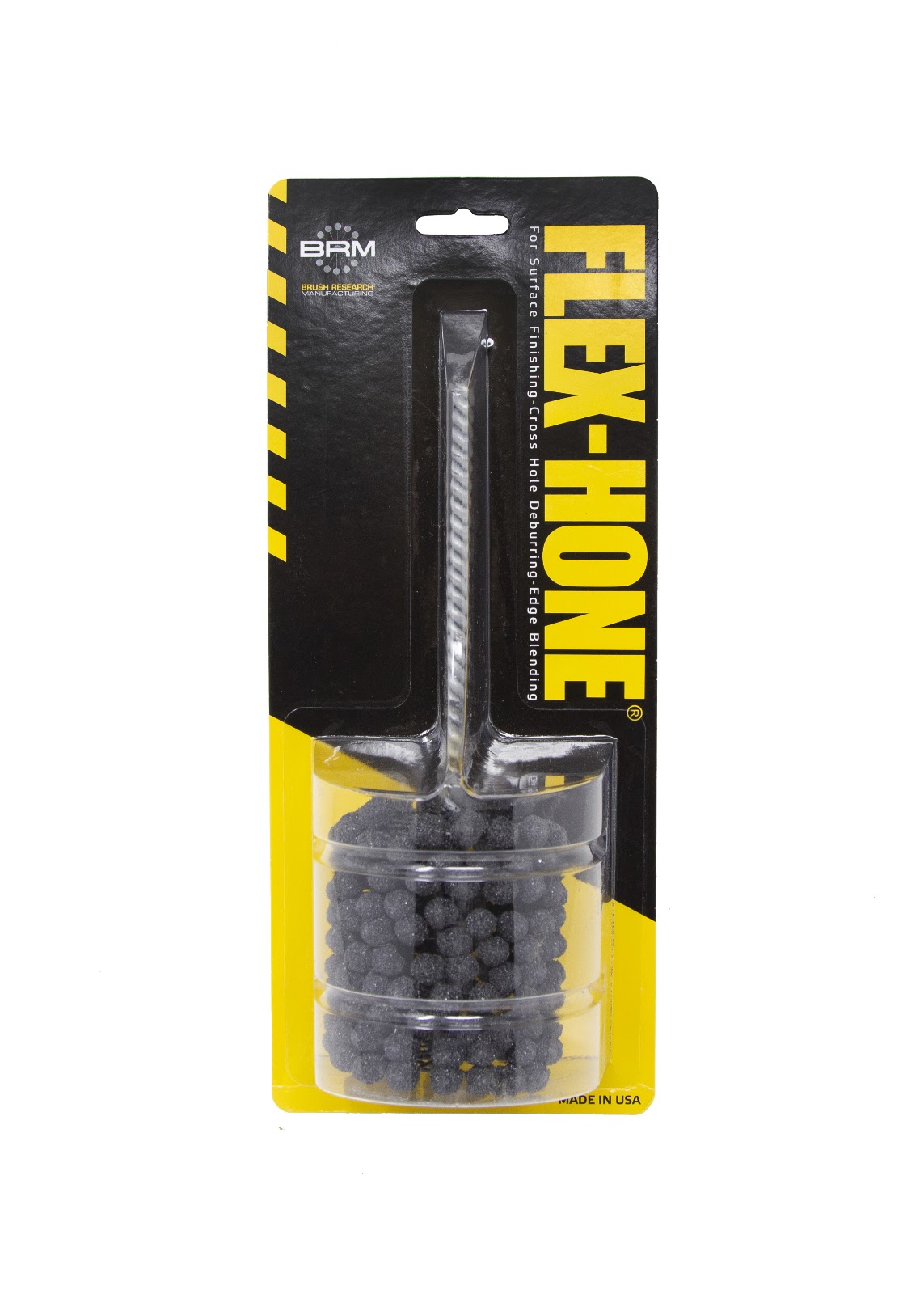

BRM BC23460BC FLEX-HONE®, 2.750" (69.9mm) Bore, 8" OAL, 60 Grit, Boron Carbide (BC)
Specifications
| Short Description | The BC23460BC FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 2.626" and 2.750". Featuring 3.00" of abrasive globules which are composed of 60 grit Boron Carbide (BC). Excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 60 grit generally provides an Ra Finish range of 60 - 80 Microinch (1.5 - 2 Micrometer). |
|---|---|
| Ra Range | 60 - 80 Microinch (1.5 - 2 Micrometer) |
| Item Width (Inches) | 5 |
| Bore Diameter (Metric) | 69.9 |
| Stem Diameter (Inch) | 0.245 |
| Tip Marking | Grey |
| Item Weight (lbs) | 0.44 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 4 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 3.00 |
| GTIN | 843469124999 |
| Item Length (Inches) | 12 |
| Stem Marking | Gold |
| Maximum Bore Diameter (Inch) | 2.750 |
| Recommended RPM | 600 - 900 |
| Minimum Bore Diameter (Inch) | 2.626 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 2.750 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Grit | 60 |
| UPC Number | 843469124999 |
| Overall Length (Inch) | 8 |
