Brush Research Manufacturing
BC3480Z25

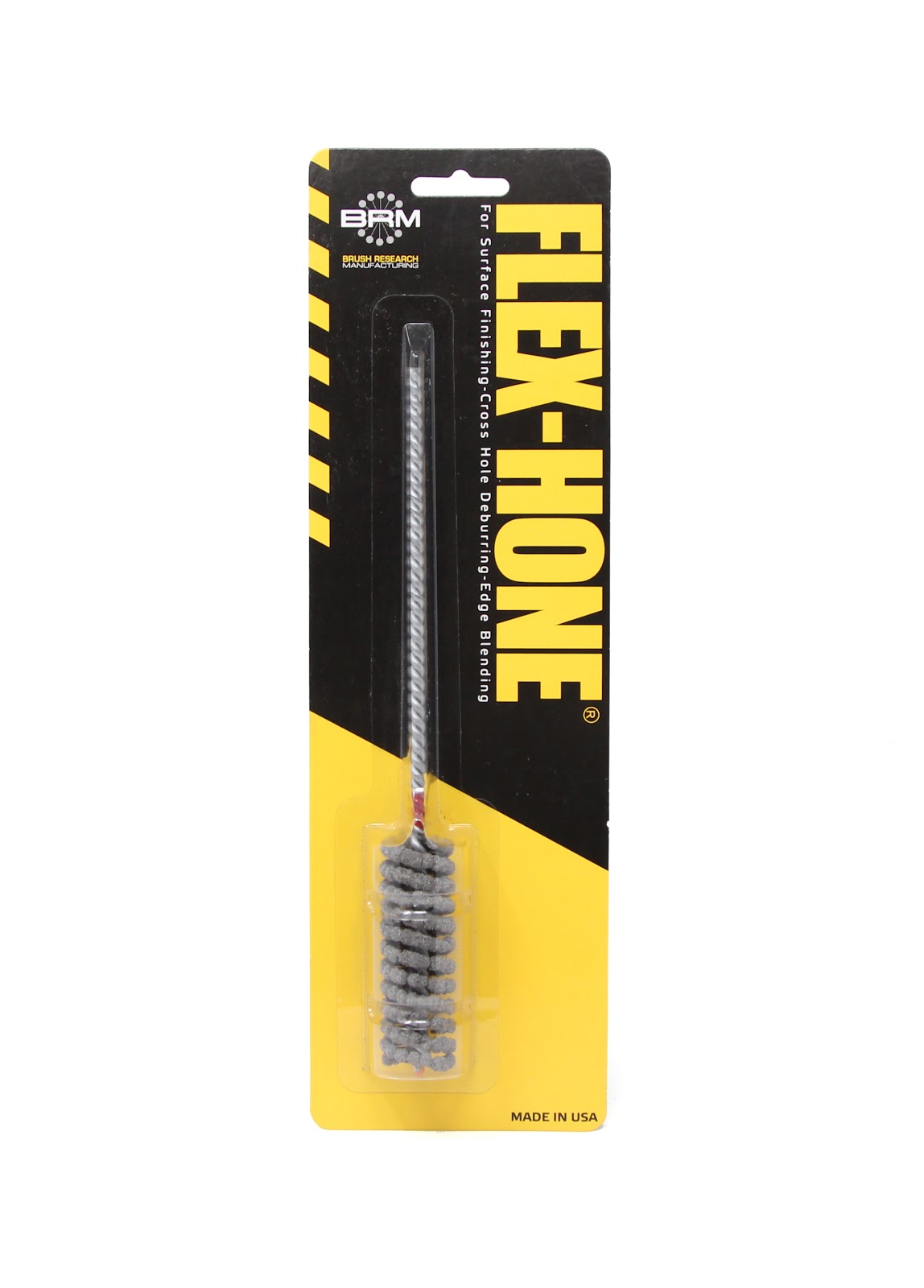

BRM BC3480Z25 FLEX-HONE®, 0.750" (19.1mm) Bore, 8" OAL, 80 Grit, Zirconia Alumina #1525 (Z25)
Specifications
| Short Description | The BC3480Z25 FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.710" and 0.750". Featuring 2.50" of abrasive globules which are composed of 80 grit Zirconia Alumina #1525 (Z25). Excellent for Low carbon to medium carbon steels, stainless steel and cast iron. 80 grit generally provides an Ra Finish range of 45 - 64 Microinch (1.2 - 1.6 Micrometer). |
|---|---|
| Ra Range | 45 - 64 Microinch (1.2 - 1.6 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 19.1 |
| Stem Diameter (Inch) | 0.190 |
| Tip Marking | Orange |
| Item Weight (lbs) | 0.13 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Zirconia Alumina #1525 |
| Abrasive Part (Inch) | 2.50 |
| GTIN | 843469127617 |
| Item Length (Inches) | 12 |
| Stem Marking | Red |
| Maximum Bore Diameter (Inch) | 0.750 |
| Recommended RPM | 900 - 1000 |
| Minimum Bore Diameter (Inch) | 0.710 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.750 |
| Applicable Materials | Low carbon to medium carbon steels, stainless steel and cast iron |
| Grit | 80 |
| UPC Number | 843469127617 |
| Overall Length (Inch) | 8 |
