Brush Research Manufacturing
BC55M240Z25

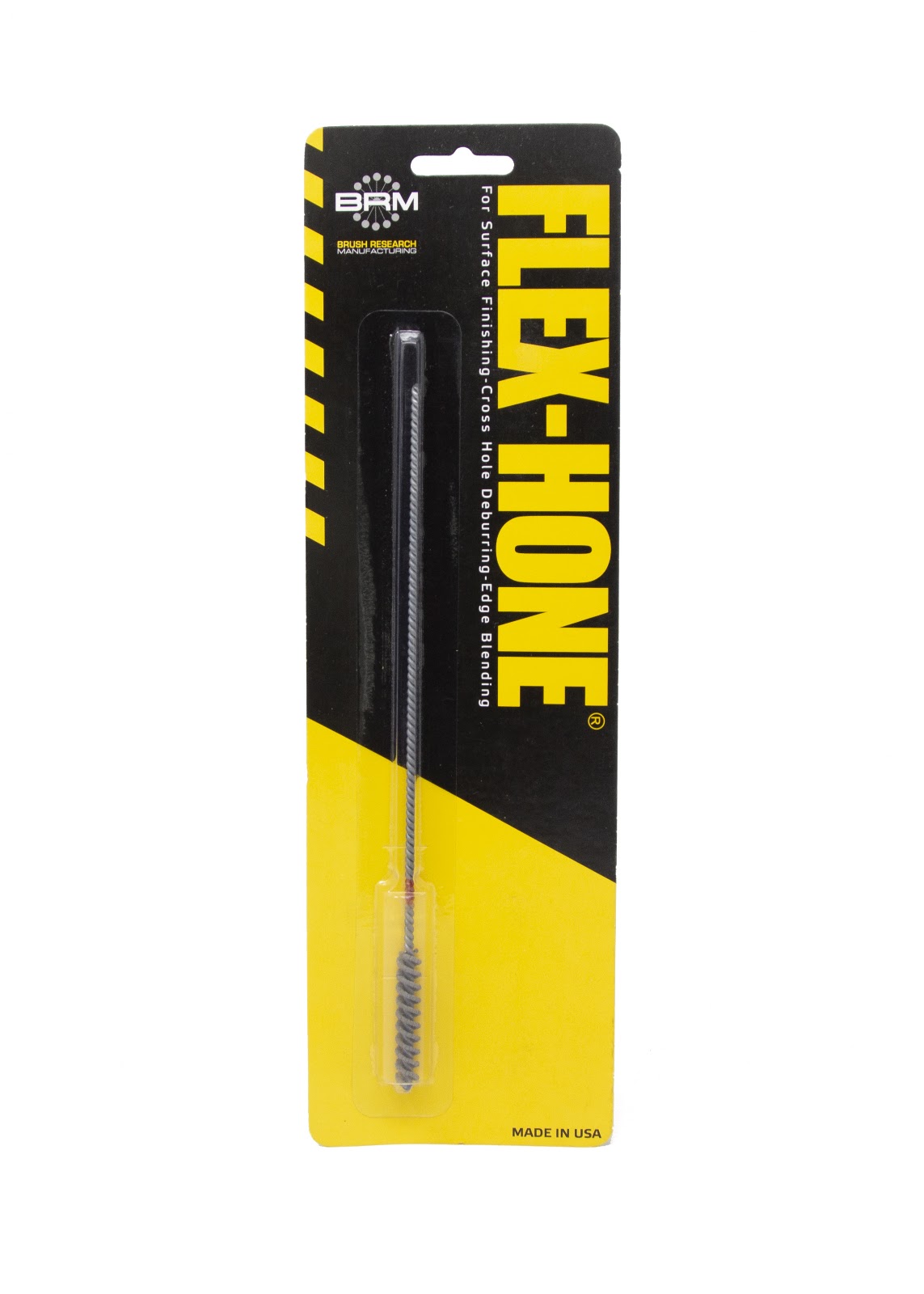

BRM BC55M240Z25 FLEX-HONE®, 0.217" (5.5mm) Bore, 8" OAL, 240 Grit, Zirconia Alumina #1525 (Z25)
Specifications
| Short Description | The BC55M240Z25 FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.198" and 0.217". Featuring 1.50" of abrasive globules which are composed of 240 grit Zirconia Alumina #1525 (Z25). Excellent for Low carbon to medium carbon steels, stainless steel and cast iron. 240 grit generally provides an Ra Finish range of 24 - 32 Microinch (.6 - .8 Micrometer). |
|---|---|
| Ra Range | 24 - 32 Microinch (.6 - .8 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 5.5 |
| Stem Diameter (Inch) | 0.083 |
| Tip Marking | Navy Blue |
| Item Weight (lbs) | 0.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Zirconia Alumina #1525 |
| Abrasive Part (Inch) | 1.50 |
| GTIN | 843469128416 |
| Item Length (Inches) | 12 |
| Stem Marking | Red |
| Maximum Bore Diameter (Inch) | 0.217 |
| Recommended RPM | 1000 - 1200 |
| Minimum Bore Diameter (Inch) | 0.198 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.217 |
| Applicable Materials | Low carbon to medium carbon steels, stainless steel and cast iron |
| Grit | 240 |
| UPC Number | 843469128416 |
| Overall Length (Inch) | 8 |
