BC5M600AO

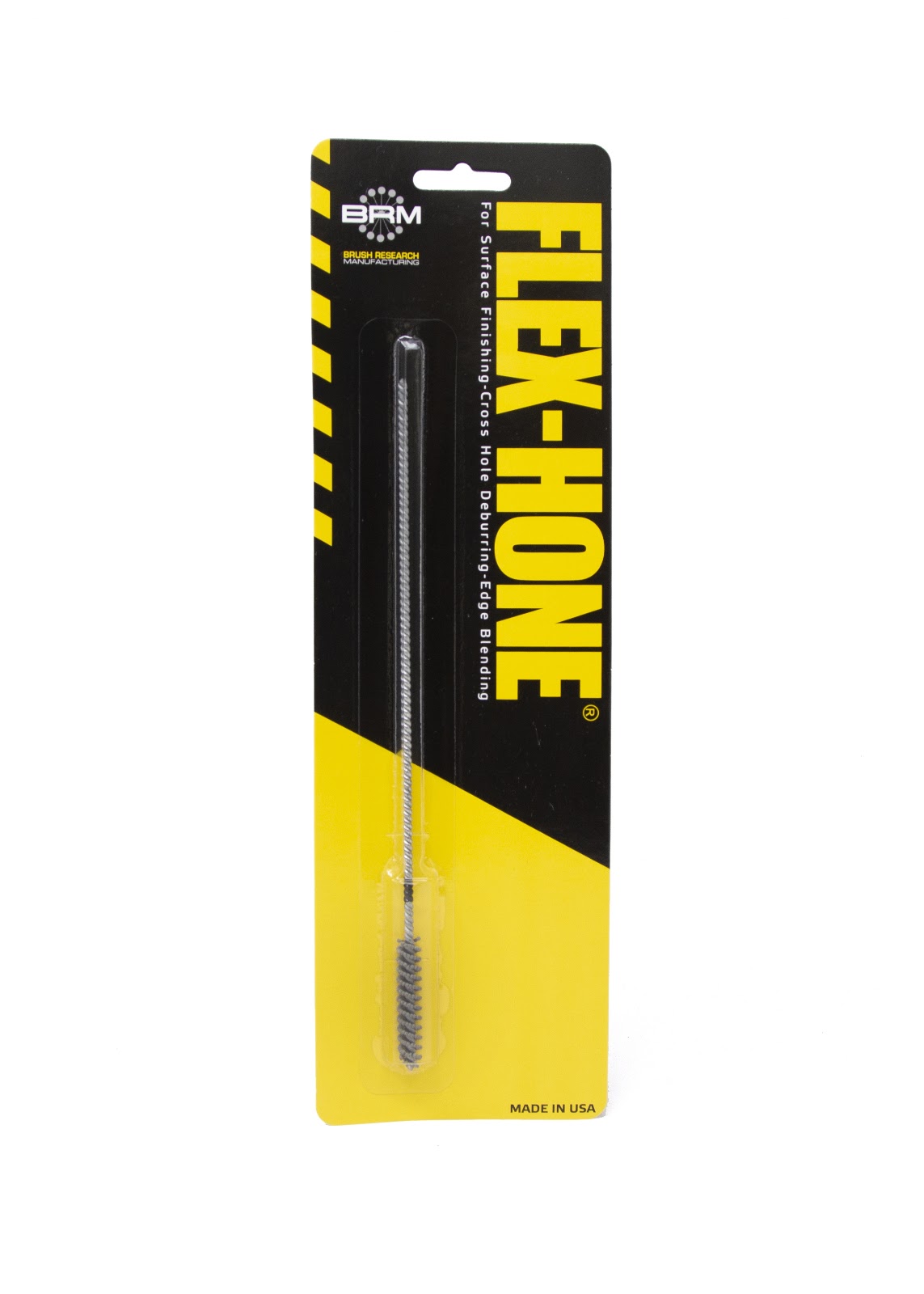

BRM BC5M600AO FLEX-HONE®, 0.197" (5mm) Bore, 8" OAL, 600 Grit, Aluminum Oxide (AO)
Specifications
| Short Description | The BC5M600AO FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.188" and 0.197". Featuring 1.50" of abrasive globules which are composed of 600 grit Aluminum Oxide (AO). Excellent for Aluminum, Brass, Bronze, and softer non-ferrous materials. 240 AO is commonly used for deglazing Nikasil cylinders. 600 grit generally provides an Ra Finish range of 8 - 12 Microinch (.2 - .3 Micrometer). |
|---|---|
| Ra Range | 8 - 12 Microinch (.2 - .3 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 5 |
| Stem Diameter (Inch) | 0.083 |
| Tip Marking | Pink |
| Item Weight (lbs) | 0.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Aluminum Oxide |
| Abrasive Part (Inch) | 1.50 |
| GTIN | 843469129543 |
| Item Length (Inches) | 12 |
| Stem Marking | Black |
| Maximum Bore Diameter (Inch) | 0.197 |
| Recommended RPM | 1000 - 1200 |
| Minimum Bore Diameter (Inch) | 0.188 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.197 |
| Applicable Materials | Aluminum, Brass, Bronze, and softer non-ferrous materials. 240 AO is commonly used for deglazing Nikasil cylinders |
| Grit | 600 |
| UPC Number | 843469129543 |
| Overall Length (Inch) | 8 |
