Brush Research Manufacturing
BC64M240BC

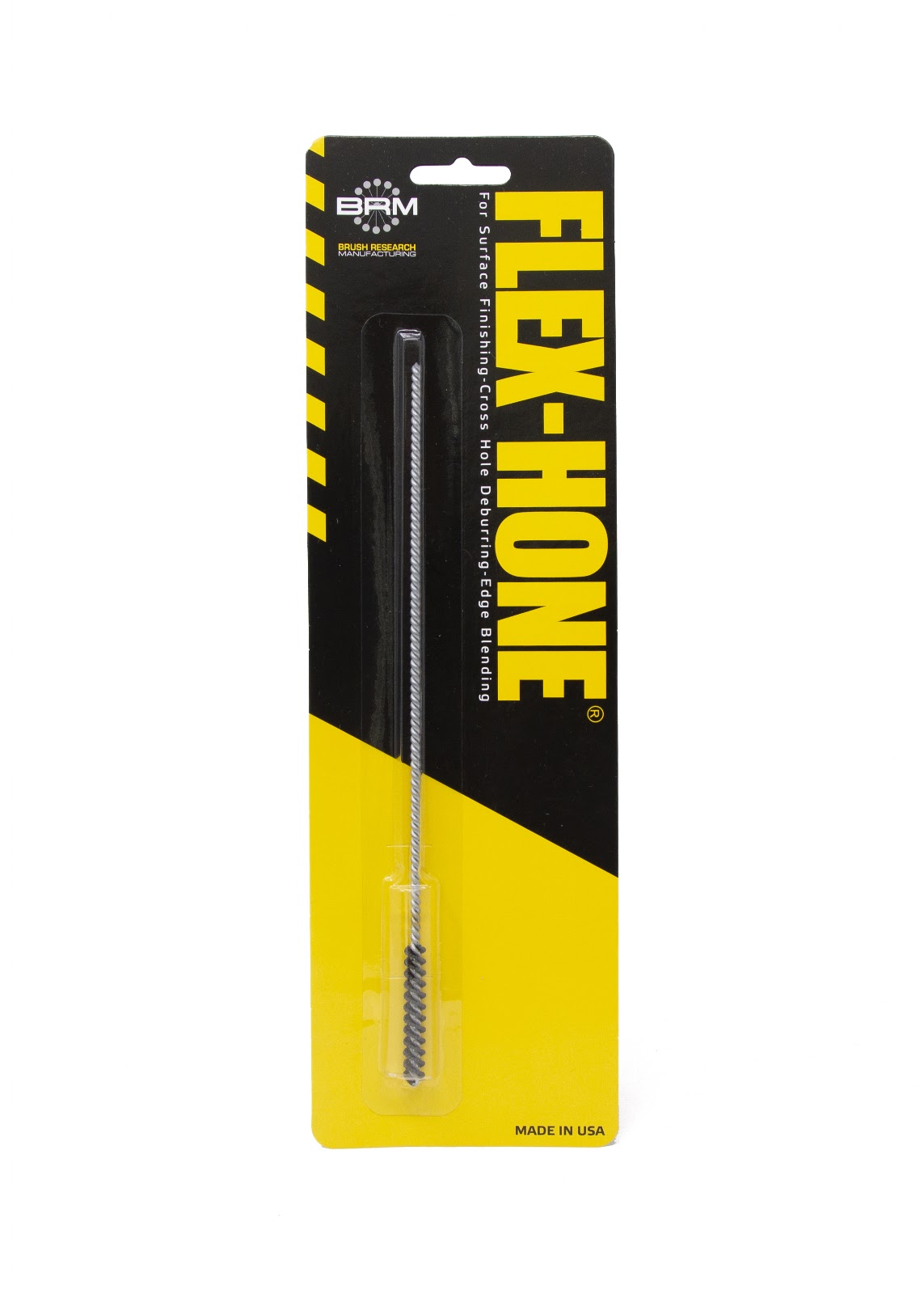

BRM BC64M240BC FLEX-HONE®, 0.252" (6.4mm) Bore, 8" OAL, 240 Grit, Boron Carbide (BC)
Specifications
| Short Description | The BC64M240BC FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.237" and 0.252". Featuring 1.50" of abrasive globules which are composed of 240 grit Boron Carbide (BC). Excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 240 grit generally provides an Ra Finish range of 24 - 32 Microinch (.6 - .8 Micrometer). |
|---|---|
| Ra Range | 24 - 32 Microinch (.6 - .8 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 6.4 |
| Stem Diameter (Inch) | 0.112 |
| Tip Marking | Navy Blue |
| Item Weight (lbs) | 0.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 1.50 |
| GTIN | 843469129840 |
| Item Length (Inches) | 12 |
| Stem Marking | Gold |
| Maximum Bore Diameter (Inch) | 0.252 |
| Recommended RPM | 1000 - 1200 |
| Minimum Bore Diameter (Inch) | 0.237 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.252 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Grit | 240 |
| UPC Number | 843469129840 |
| Overall Length (Inch) | 8 |
