Brush Research Manufacturing
BC6M400BC

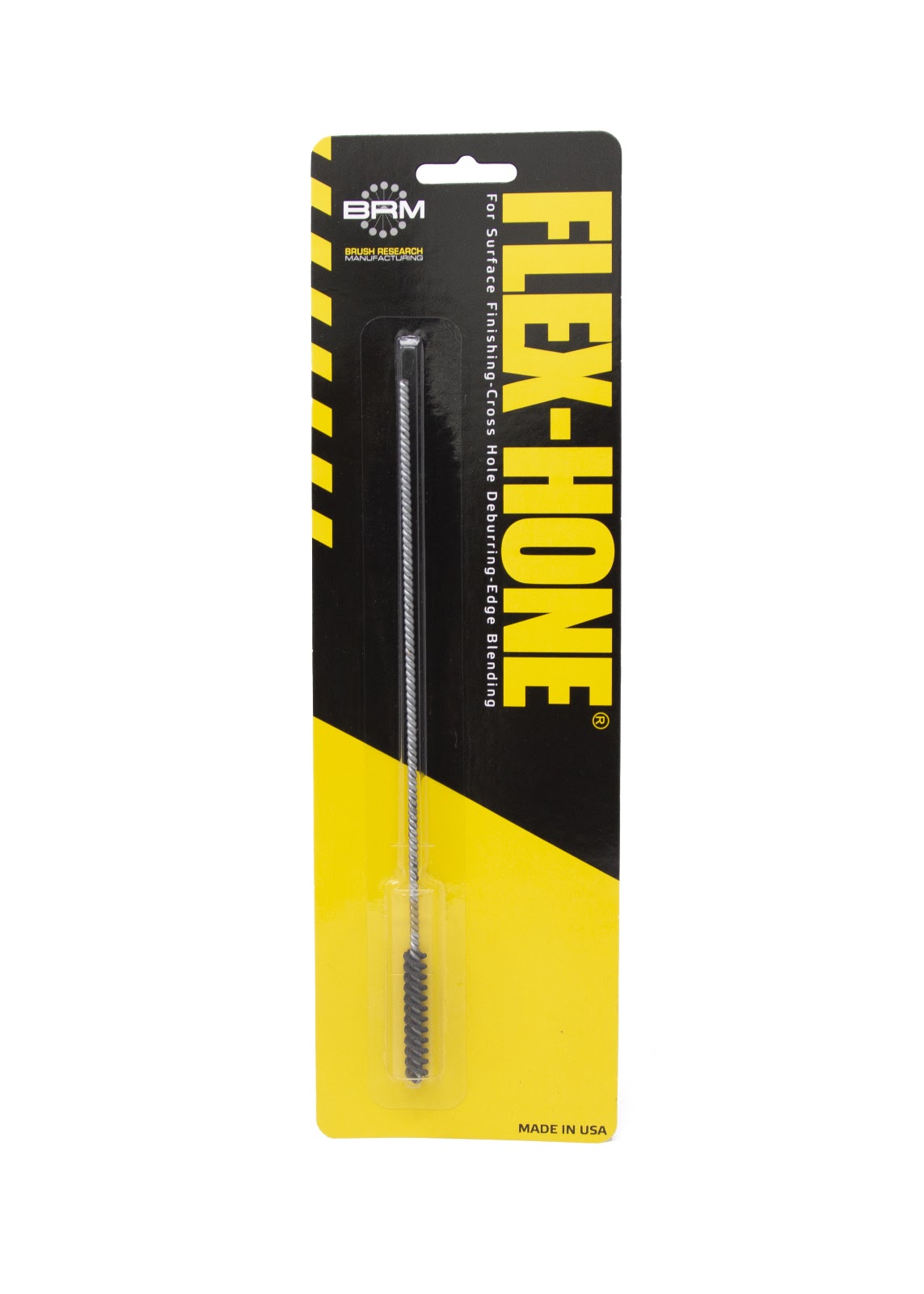

BRM BC6M400BC FLEX-HONE®, 0.236" (6mm) Bore, 8" OAL, 400 Grit, Boron Carbide (BC)
Specifications
| Short Description | The BC6M400BC FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 0.218" and 0.236". Featuring 1.50" of abrasive globules which are composed of 400 grit Boron Carbide (BC). Excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 400 grit generally provides an Ra Finish range of 10 - 20 Microinch (.3 - .6 Micrometer). |
|---|---|
| Ra Range | 10 - 20 Microinch (.3 - .6 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 6 |
| Stem Diameter (Inch) | 0.112 |
| Tip Marking | Yellow |
| Item Weight (lbs) | 0.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 1.50 |
| GTIN | 843469130419 |
| Item Length (Inches) | 12 |
| Stem Marking | Gold |
| Maximum Bore Diameter (Inch) | 0.236 |
| Recommended RPM | 1000 - 1200 |
| Minimum Bore Diameter (Inch) | 0.218 |
| Series | FLEX-HONE® - BC Standard Duty (0.157"-3") |
| Bore Diameter (Inch) | 0.236 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Grit | 400 |
| UPC Number | 843469130419 |
| Overall Length (Inch) | 8 |
