CHB10M320BC

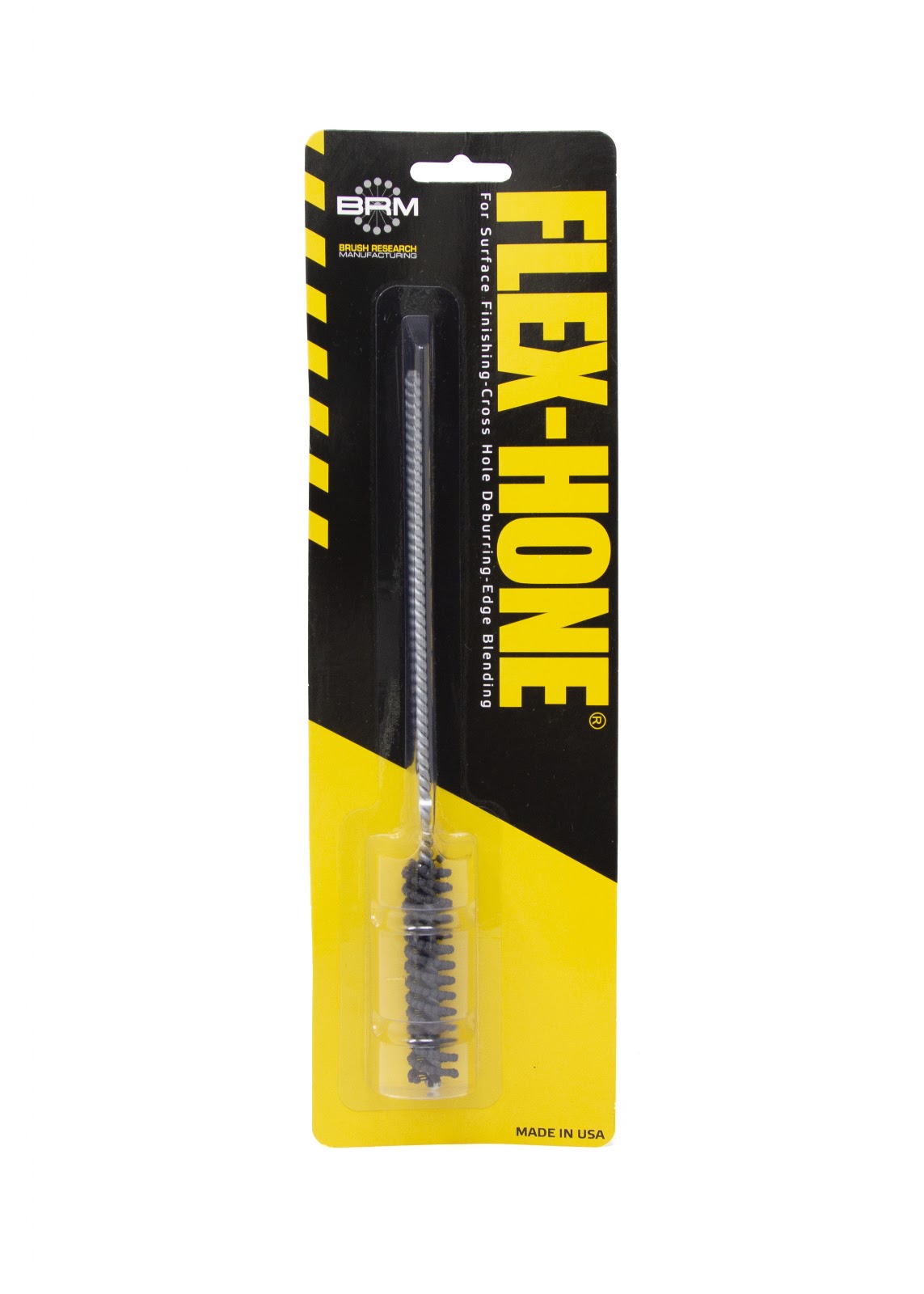

BRM CHB10M320BC FLEX-HONE®, 0.394" (10mm) bore, 0.016-0.030 Chamfer, 320 Grit (BC)
Specifications
| Short Description | The CHB10M320BC Chamfer FLEX-HONE® tool for surface finishing and deburring is designed for bore size of 0.394" (10mm) and chamfers between 0.016" and 0.030". This tool features 2.00" of abrasive globules which are composed of 320 grit Boron Carbide (BC) and are excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 320 grit generally provides an Ra Finish range of 18 - 30 Microinch (.5 - .7 Micrometer). |
|---|---|
| Ra Range | 18 - 30 Microinch (.5 - .7 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 10 |
| Stem Diameter (Inch) | 0.140 |
| Tip Marking | White |
| Item Weight (lbs) | 0.0313 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 2.00 |
| GTIN | 843469139979 |
| Item Length (Inches) | 12 |
| Stem Marking | Gold |
| Recommended RPM | 1000 - 1200 |
| Minimum Chamfer (Inch) | 0.016 |
| Series | FLEX-HONE® for Chamfers |
| Bore Diameter (Inch) | 0.394 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Maximum Chamfer (Inch) | 0.030 |
| Grit | 320 |
| UPC Number | 843469139979 |
| Overall Length (Inch) | 8 |
