Brush Research Manufacturing
CHB4M180BC

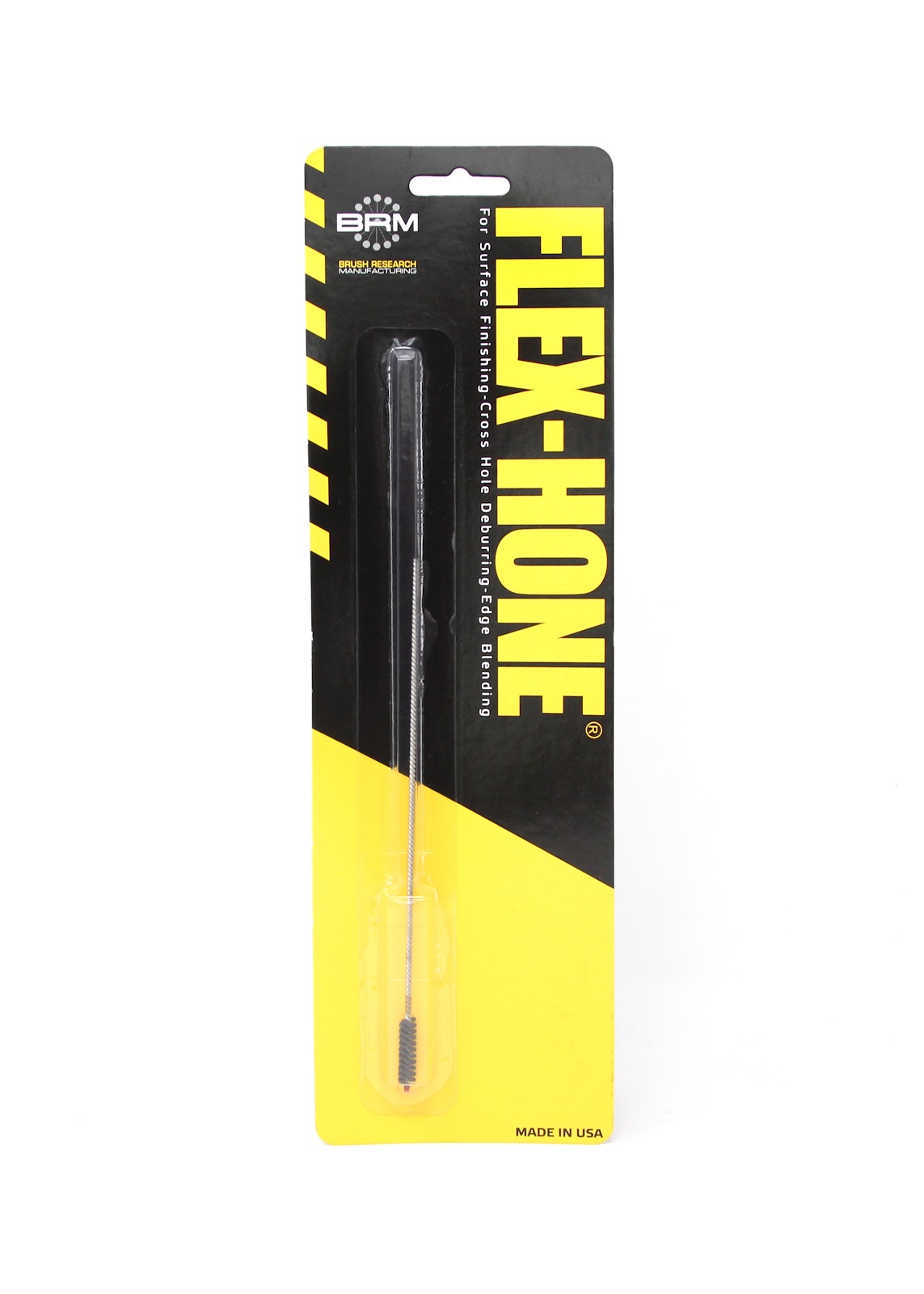

BRM CHB4M180BC FLEX-HONE®, 0.157" (4mm) bore, 0.016-0.030 Chamfer, 180 Grit (BC)
Specifications
| Short Description | The CHB4M180BC Chamfer FLEX-HONE® tool for surface finishing and deburring is designed for bore size of 0.157" (4mm) and chamfers between 0.016" and 0.030". This tool features 0.75" of abrasive globules which are composed of 180 grit Boron Carbide (BC) and are excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 180 grit generally provides an Ra Finish range of 30 - 40 Microinch (.7 - 1 Micrometer). |
|---|---|
| Ra Range | 30 - 40 Microinch (.7 - 1 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 4 |
| Stem Diameter (Inch) | 0.055 |
| Tip Marking | Red |
| Item Weight (lbs) | 0.0313 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 0.75 |
| GTIN | 843469140104 |
| Item Length (Inches) | 12 |
| Stem Marking | Gold |
| Recommended RPM | 1000 - 1200 |
| Minimum Chamfer (Inch) | 0.016 |
| Series | FLEX-HONE® for Chamfers |
| Bore Diameter (Inch) | 0.157 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Maximum Chamfer (Inch) | 0.030 |
| Grit | 180 |
| UPC Number | 843469140104 |
| Overall Length (Inch) | 6 |
