Brush Research Manufacturing
CHB64M18

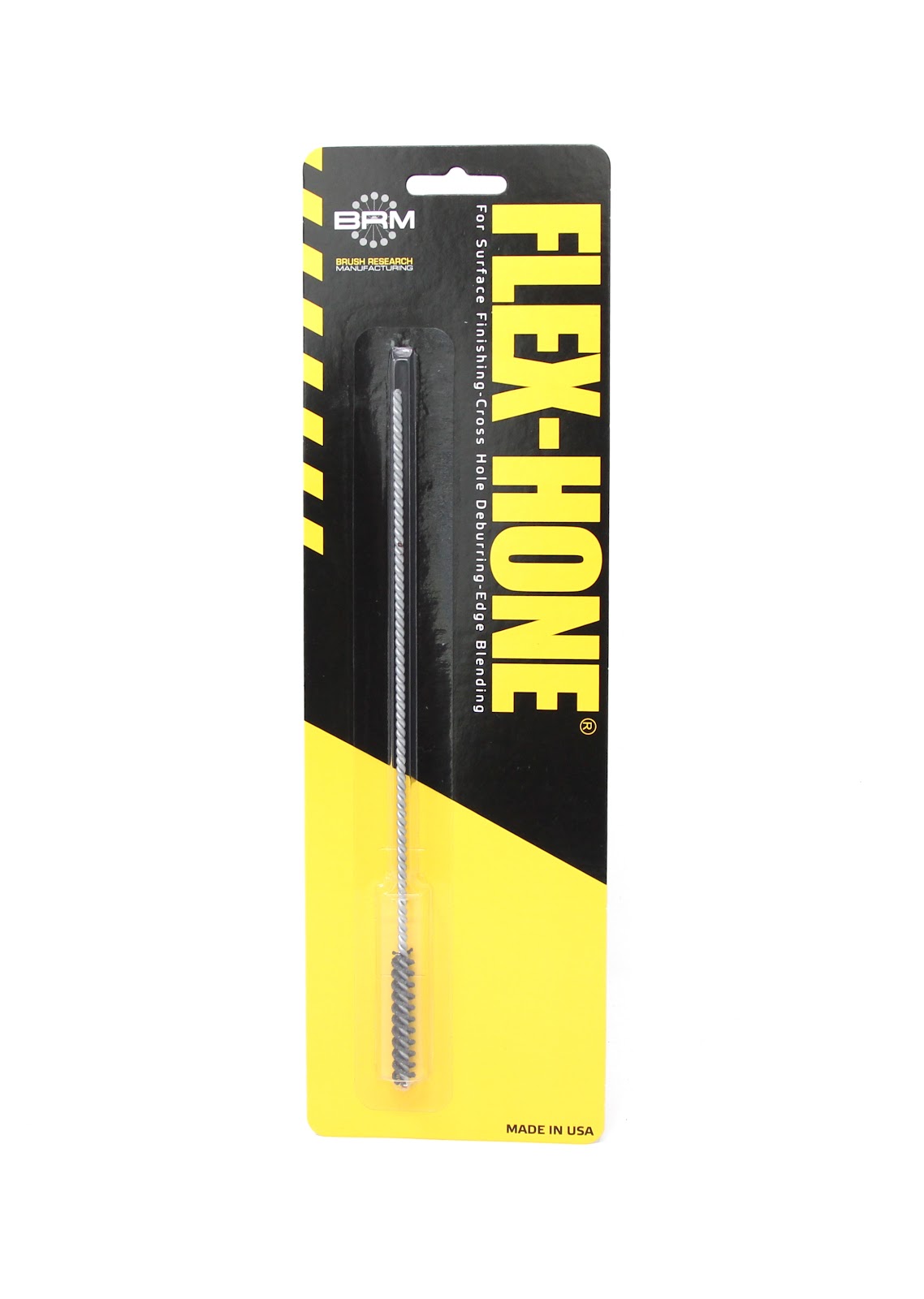

BRM CHB64M18 FLEX-HONE®, 0.252" (6.4mm) bore, 0.016-0.030 Chamfer, 180 Grit (SC)
Specifications
| Short Description | The CHB64M18 Chamfer FLEX-HONE® tool for surface finishing and deburring is designed for bore size of 0.252" (6.4mm) and chamfers between 0.016" and 0.030". This tool features 1.50" of abrasive globules which are composed of 180 grit Silicon Carbide (SC) and are excellent for Mild steel, stainless steel, cast iron and other softer ferrous materials. 180 grit generally provides an Ra Finish range of 30 - 40 Microinch (.7 - 1 Micrometer). |
|---|---|
| Ra Range | 30 - 40 Microinch (.7 - 1 Micrometer) |
| Item Width (Inches) | 3.5 |
| Bore Diameter (Metric) | 6.4 |
| Stem Diameter (Inch) | 0.112 |
| Tip Marking | Red |
| Item Weight (lbs) | 0.05 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 1 |
| Abrasive Type | Silicon Carbide |
| Abrasive Part (Inch) | 1.50 |
| GTIN | 843469140159 |
| Item Length (Inches) | 12 |
| Stem Marking | Silver/No Color |
| Recommended RPM | 1000 - 1200 |
| Minimum Chamfer (Inch) | 0.016 |
| Series | FLEX-HONE® for Chamfers |
| Bore Diameter (Inch) | 0.252 |
| Applicable Materials | Mild steel, stainless steel, cast iron and other softer ferrous materials |
| Maximum Chamfer (Inch) | 0.030 |
| Grit | 180 |
| UPC Number | 843469140159 |
| Overall Length (Inch) | 8 |
