Brush Research Manufacturing
GBD1500LA

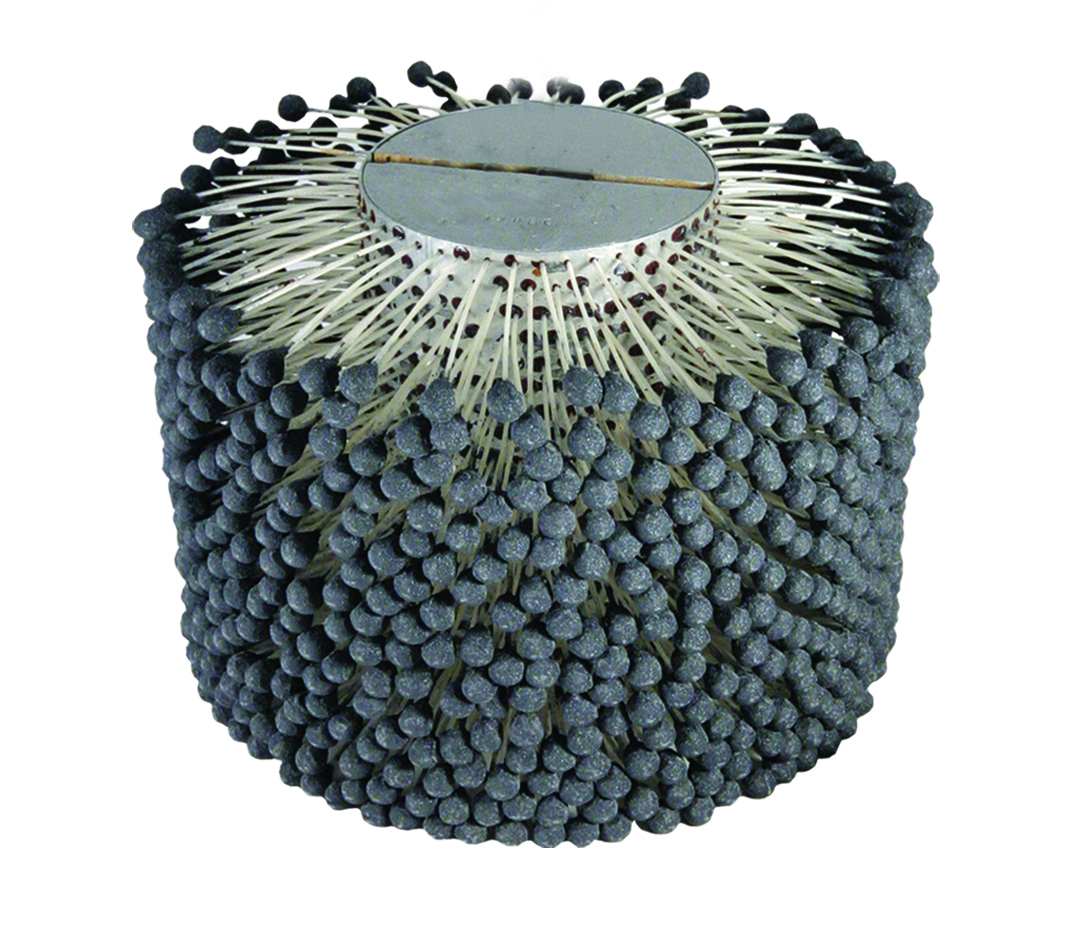

Brush Research GBD1500LA BRM, 15.000" (381mm) Bore, 34" OAL, 1000/1200 Grit, Levigated Alumina (LA)
Specifications
| Short Description | The GBD1500LA Woodcore FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 14.001" and 15.000". Featuring 12.00" of abrasive globules which are composed of 1000/1200 grit Levigated Alumina (LA). Excellent for Final polish on many materials. 1000/1200 grit generally provides an Ra Finish range of 3 - 10 Microinch (.05 - .2 Micrometer). Requires mfg part# SHAFT6. Hex drive shaft, sold separately. |
|---|---|
| Ra Range | 3 - 10 Microinch (.05 - .2 Micrometer) |
| Item Width (Inches) | 15 |
| Bore Diameter (Metric) | 381 |
| Tip Marking | Green |
| Item Weight (lbs) | 24 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 12 |
| Abrasive Type | Levigated Alumina |
| Abrasive Part (Inch) | 12.00 |
| Required Shaft | SHAFT6 |
| GTIN | 843469147288 |
| Item Length (Inches) | 15 |
| Stem Marking | Silver/No Color |
| Maximum Bore Diameter (Inch) | 15.000 |
| Recommended RPM | 125 - 200 |
| Minimum Bore Diameter (Inch) | 14.001 |
| Series | FLEX-HONE® - GBD Heavy Duty Woodcore (8"-18") |
| Bore Diameter (Inch) | 15.000 |
| Applicable Materials | Final polish on many materials |
| Shaft Diameter (Inch) | 0.625 |
| Grit | 1000/1200 |
| UPC Number | 843469147288 |
| Overall Length (Inch) | 34 |
