Brush Research Manufacturing
GBD500800BC

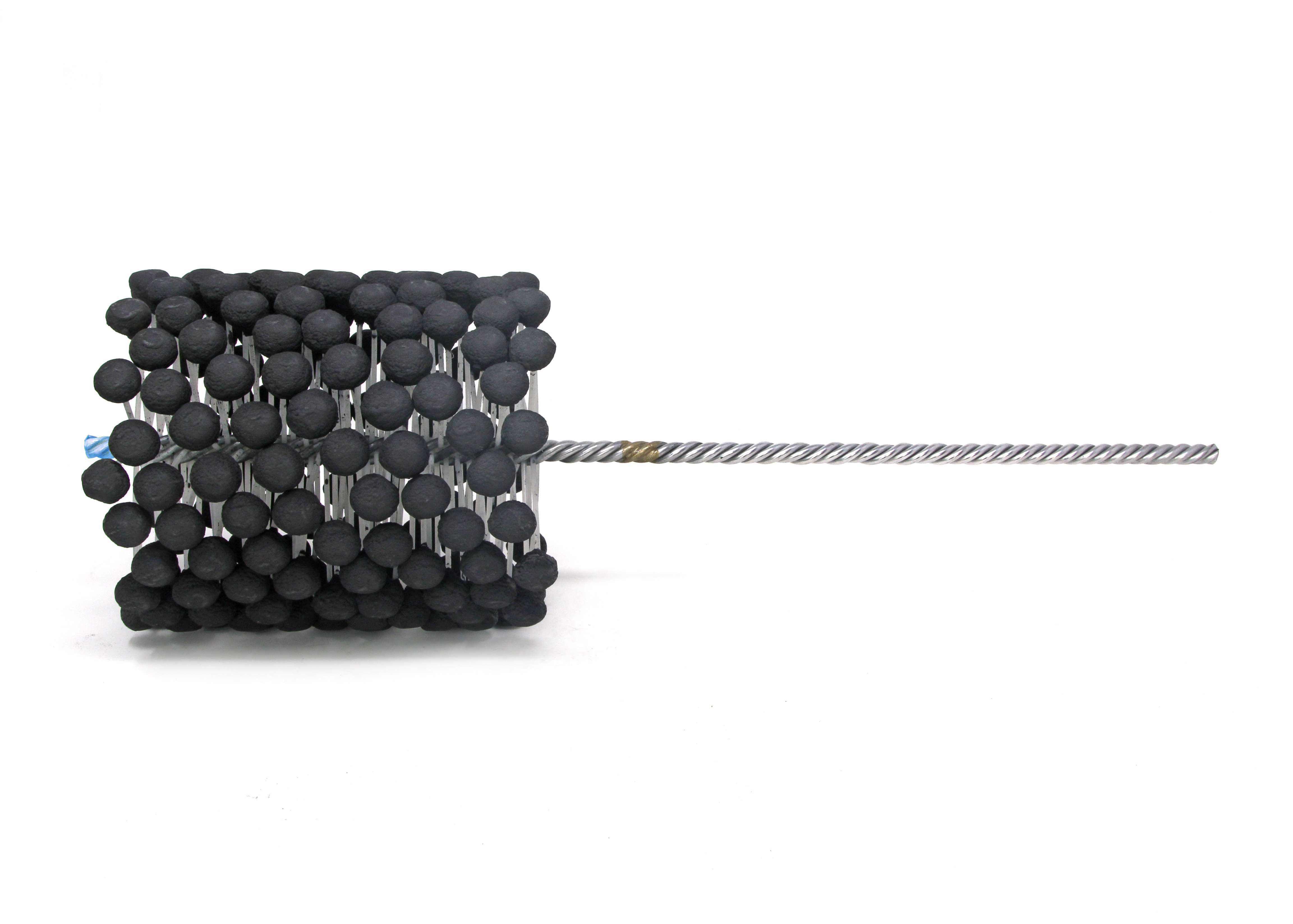

BRM GBD500800BC FLEX-HONE®, 5.000" (127mm) Bore, 17.5" OAL, 800 Grit, Boron Carbide (BC)
Specifications
| Short Description | The GBD500800BC FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 4.501" and 5.000". Featuring 6.00" of abrasive globules which are composed of 800 grit Boron Carbide (BC). Excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 800 grit generally provides an Ra Finish range of 3 - 10 Microinch (.05 - .2 Micrometer). |
|---|---|
| Ra Range | 3 - 10 Microinch (.05 - .2 Micrometer) |
| Item Width (Inches) | 8 |
| Bore Diameter (Metric) | 127 |
| Stem Diameter (Inch) | 0.350 |
| Tip Marking | Light Blue |
| Item Weight (lbs) | 1.19 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 6 |
| Abrasive Type | Boron Carbide |
| Abrasive Part (Inch) | 6.00 |
| GTIN | 843469151384 |
| Item Length (Inches) | 18 |
| Stem Marking | Gold |
| Maximum Bore Diameter (Inch) | 5.000 |
| Recommended RPM | 350 - 600 |
| Minimum Bore Diameter (Inch) | 4.501 |
| Series | FLEX-HONE® - GBD Heavy Duty (3" - 8") |
| Bore Diameter (Inch) | 5.000 |
| Applicable Materials | Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium |
| Grit | 800 |
| UPC Number | 843469151384 |
| Overall Length (Inch) | 17.5 |
