Brush Research Manufacturing
GBDH80080

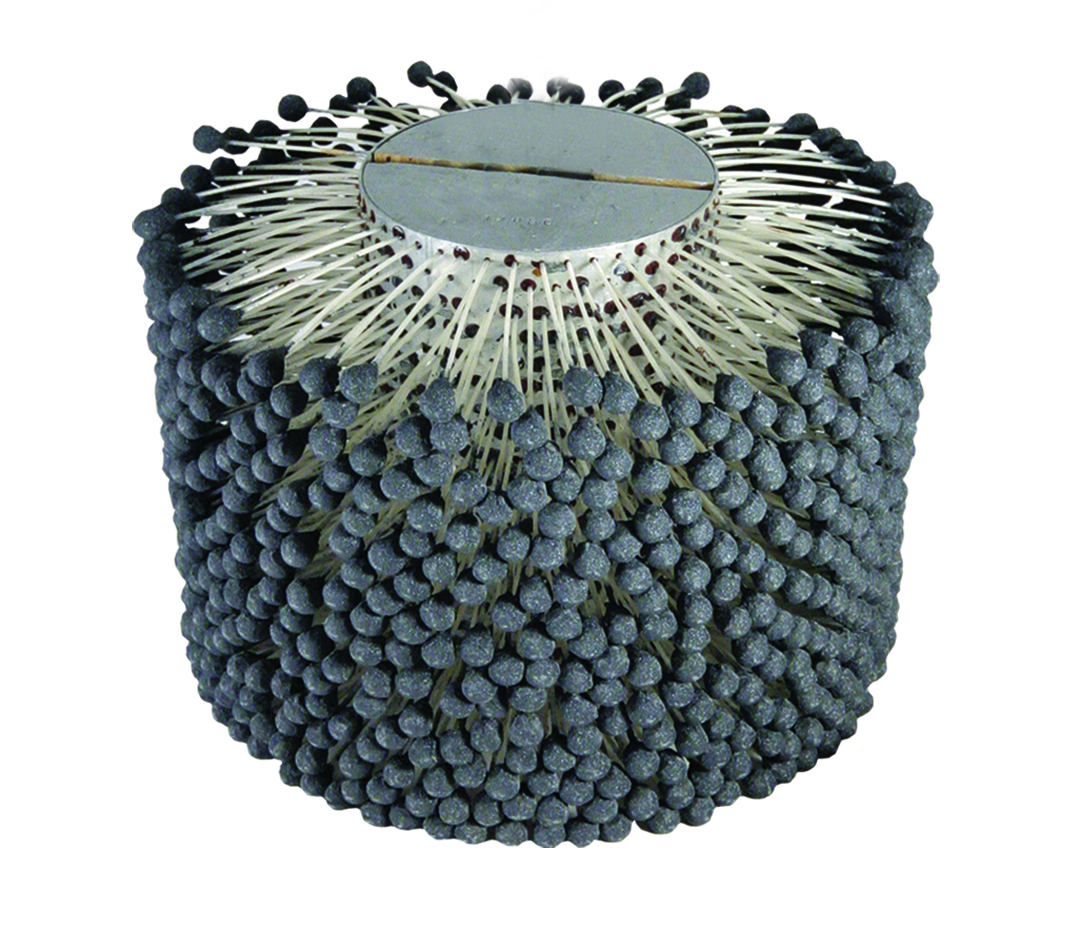

Brush Research GBDH80080 BRM, 8.000" (203mm) Bore, 34" OAL, 80 Grit, Silicon Carbide (SC)
Specifications
| Short Description | The GBDH80080 Woodcore FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 7.501" and 8.000". Featuring 8.00" of abrasive globules which are composed of 80 grit Silicon Carbide (SC). Excellent for Mild steel, stainless steel, cast iron and other softer ferrous materials. 80 grit generally provides an Ra Finish range of 45 - 64 Microinch (1.2 - 1.6 Micrometer). Requires mfg part# SHAFT3. Hex drive shaft, sold separately. |
|---|---|
| Ra Range | 45 - 64 Microinch (1.2 - 1.6 Micrometer) |
| Item Width (Inches) | 10 |
| Bore Diameter (Metric) | 203 |
| Tip Marking | Orange |
| Item Weight (lbs) | 7.06 |
| Trade Name | FLEX-HONE® |
| Item Height (Inches) | 10 |
| Abrasive Type | Silicon Carbide |
| Abrasive Part (Inch) | 8.00 |
| Required Shaft | SHAFT3 |
| GTIN | 843469154958 |
| Item Length (Inches) | 10 |
| Stem Marking | Silver/No Color |
| Maximum Bore Diameter (Inch) | 8.000 |
| Recommended RPM | 225 - 300 |
| Minimum Bore Diameter (Inch) | 7.501 |
| Series | FLEX-HONE® - GBD Heavy Duty Woodcore (8"-18") |
| Bore Diameter (Inch) | 8.000 |
| Applicable Materials | Mild steel, stainless steel, cast iron and other softer ferrous materials |
| Shaft Diameter (Inch) | 0.500 |
| Grit | 80 |
| UPC Number | 843469154958 |
| Overall Length (Inch) | 34 |
