Carmex
16EL14WMXC

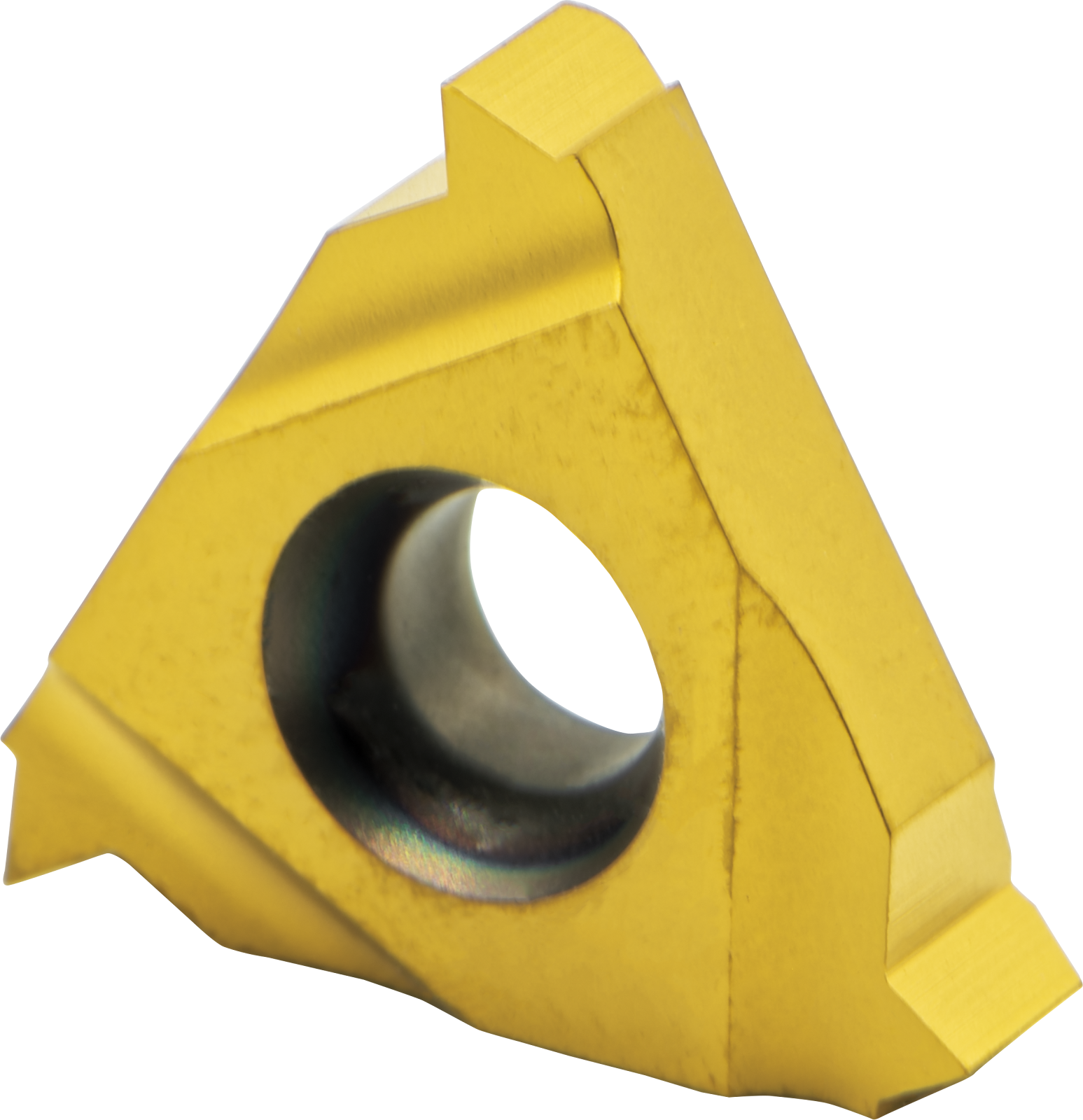

Carmex 16EL14WMXC
Specifications
| Short Description | 16 EL 14 W MXC |
|---|---|
| number of Teeth | 1 |
| Material | Carbide |
| Centerline to Cutting Edge (in) | 0.040 in |
| EIRL | External Left-Hand |
| Cutting Edge to Material (in) | 0.05 in |
| Is Coated | Y |
| Cutting Edge to Material (Metric) | 1.2 mm |
| Thread Form | Whitworth - 55°;BSW |
| Grade | MXC |
| Has Chipbreaker | N |
| Pitch (TPI) | 14.00 TPI |
| Centerline to Cutting Edge (Metric) | 1.00 mm |
| Country of Origin | IL |
