Carmex
MC05045C11A90MT8

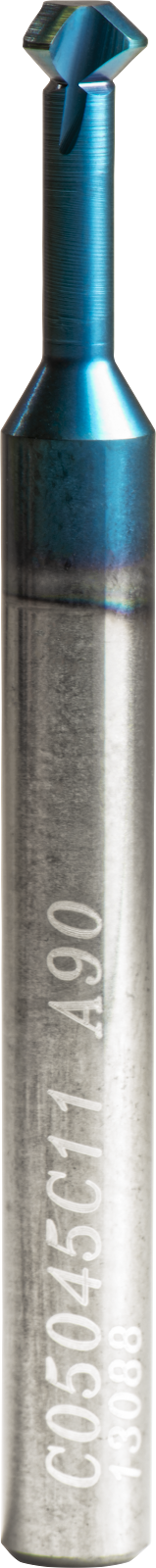

Carmex MC05045C11A90MT8
Specifications
| Material | Carbide |
|---|---|
| Overall Length (Inch) | 2 in |
| Shank Diameter (Inch) | 0.20 in |
| Number Of Flutes | 3 |
| Short Description | MC 05045 C11 A90 MT8 |
| Shank Type | Cylindrical (DIN6535-HA) |
| Grade | MT8 |
| Function | Chamfering |
| EIRL | External Right-Hand;External Left-Hand;Internal Right-Hand;Internal Left-Hand |
| Is Coated | Y |
| Chamfer Depth (Inch) | 0.039 in |
| Nose Flat Width (Metric) | 1.10 mm |
| Has Coolant | N |
| Cut Diameter (Inch) | 0.177 in |
| Country of Origin | IL |
