Carmex
MGR5B10L15BXC

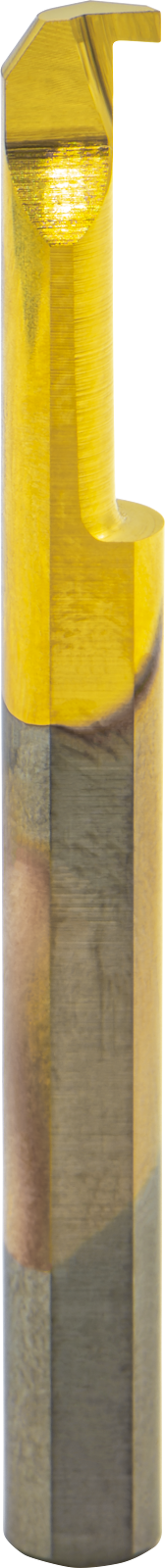

Carmex MGR5B10L15BXC
Specifications
| Material | Carbide |
|---|---|
| Short Description | MGR 5 B1.0 L15 BXC |
| Grade | BXC |
| Country of Origin | IL |
| Shank Type | Cylindrical (Weldon) |
| Centerline to Cutting Edge (in) | 0.090 in |
| Function | Grooving |
| EIRL | Internal Right-Hand |
| Is Coated | Y |
| Holder Code | SIM…H5 |
| Shank Diameter (Inch) | 0.20 in |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 2.30 mm |
| Overall Length (Inch) | 2.0 in |
