Carmex
MIL10L353TRBXC

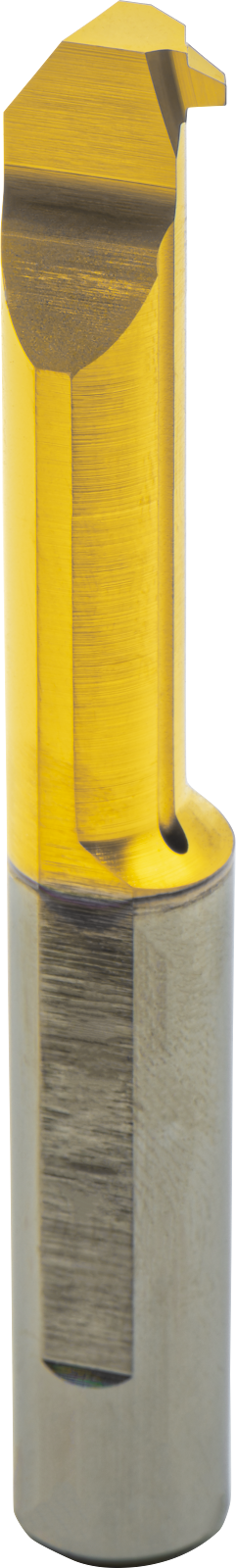

Carmex MIL10L353TRBXC
Specifications
| Short Description | MIL 10 L35 3 TR BXC |
|---|---|
| Shank Type | Cylindrical (Weldon) |
| Material | Carbide |
| Thread Size | TR14 x 3;TR22 x 3;TR24 x 3;TR26 x 3;TR28 x 3 |
| Centerline to Cutting Edge (in) | 0.190 in |
| Function | Threading |
| Pitch (Metric) | 03.00 mm |
| EIRL | Internal Left-Hand |
| Is Coated | Y |
| Holder Code | SIM…H10 |
| Shank Diameter (Inch) | 0.39 in |
| Thread Form | Trapez (DIN 103) |
| Grade | BXC |
| Pitch (TPI) | 03.00 TPI |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 4.8 mm |
| Overall Length (Inch) | 2.9 in |
