Carmex
MIL5L22A60BXC

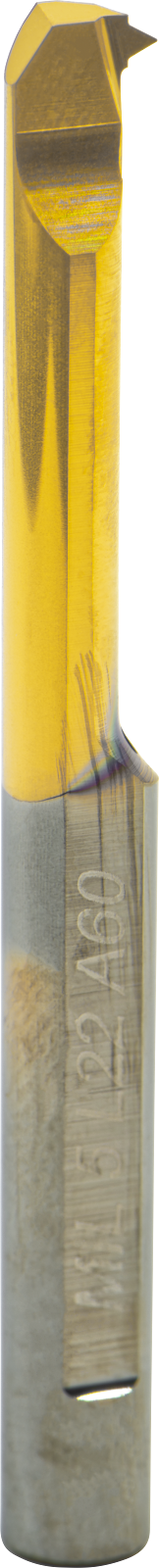

Carmex MIL5L22A60BXC
Specifications
| Short Description | MIL 5 L22 A60 BXC |
|---|---|
| Shank Type | Cylindrical (Weldon) |
| Material | Carbide |
| Centerline to Cutting Edge (in) | 0.090 in |
| Function | Threading |
| EIRL | Internal Left-Hand |
| Is Coated | Y |
| Holder Code | SIM…H5 |
| Shank Diameter (Inch) | 0.20 in |
| Thread Form | Partial Profile - 60° |
| Grade | BXC |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 2.30 mm |
| Country of Origin | IL |
| Overall Length (Inch) | 2.0 in |
