Carmex
MIR6L2215TRBXC

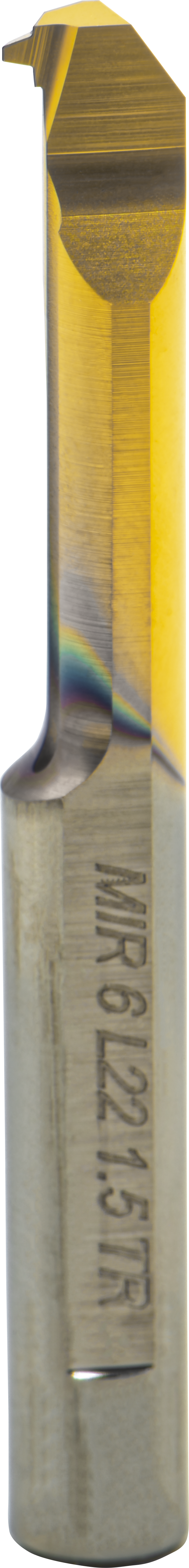

Carmex MIR6L2215TRBXC
Specifications
| Short Description | MIR 6 L22 1.5 TR BXC |
|---|---|
| Shank Type | Cylindrical (Weldon) |
| Material | Carbide |
| Thread Size | TR 8 x 1.5;TR 9 x 1.5;TR10 x 1.5 |
| Centerline to Cutting Edge (in) | 0.110 in |
| Function | Threading |
| Pitch (Metric) | 01.50 mm |
| EIRL | Internal Right-Hand |
| Is Coated | Y |
| Holder Code | SIM…H6 |
| Shank Diameter (Inch) | 0.24 in |
| Thread Form | Trapez (DIN 103) |
| Grade | BXC |
| Pitch (TPI) | 01.50 TPI |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 2.80 mm |
| Country of Origin | IL |
| Overall Length (Inch) | 2.0 in |
