Carmex
MIR7L252TRBXC

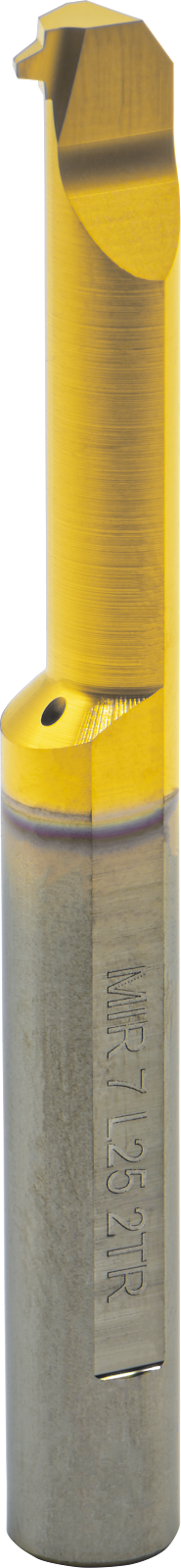

Carmex MIR7L252TRBXC
Specifications
| Short Description | MIR 7 L25 2 TR BXC |
|---|---|
| Shank Type | Cylindrical (Weldon) |
| Material | Carbide |
| Thread Size | TR 9 x 2;TR10 x 2; TR11 x 2;TR12 x 2 |
| Centerline to Cutting Edge (in) | 0.130 in |
| Function | Threading |
| Pitch (Metric) | 02.00 mm |
| EIRL | Internal Right-Hand |
| Is Coated | Y |
| Holder Code | SIM…H7 |
| Shank Diameter (Inch) | 0.28 in |
| Thread Form | Trapez (DIN 103) |
| Grade | BXC |
| Pitch (TPI) | 02.00 TPI |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 3.2 mm |
| Country of Origin | IL |
| Overall Length (Inch) | 2.4 in |
