Carmex
MT0250C0628UNMT7

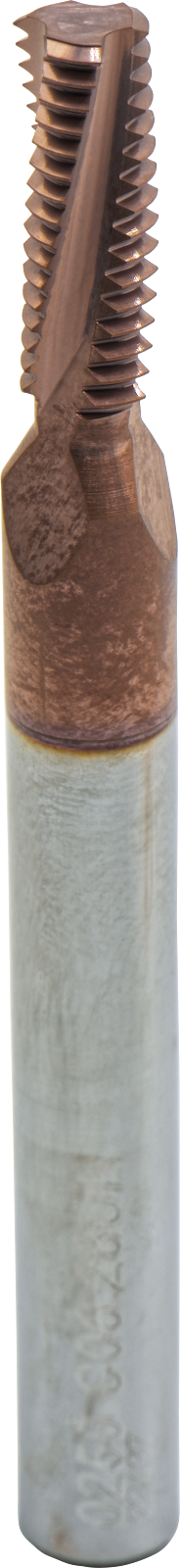

Carmex MT0250C0628UNMT7
Specifications
| Number Of Flutes | 3 |
|---|---|
| Overall Length (Inch) | 2.5 in |
| Short Description | MT 0250 C06 28 UN MT7 |
| Thread Standard | (1/4) |
| Material | Carbide |
| Shank Type | Cylindrical (DIN6535-HA) |
| Function | Threading |
| EIRL | Internal Right-Hand;Internal Left-Hand |
| Is Coated | Y |
| Shank Diameter (Inch) | (1/4) in |
| Thread Form | UN |
| Grade | MT7 |
| Pitch (TPI) | 28.00 TPI |
| Has Coolant | N |
| Cut Diameter (Inch) | 0.205 in |
| Country of Origin | IL |
