Carmex
MTB0500D1412UNMT7

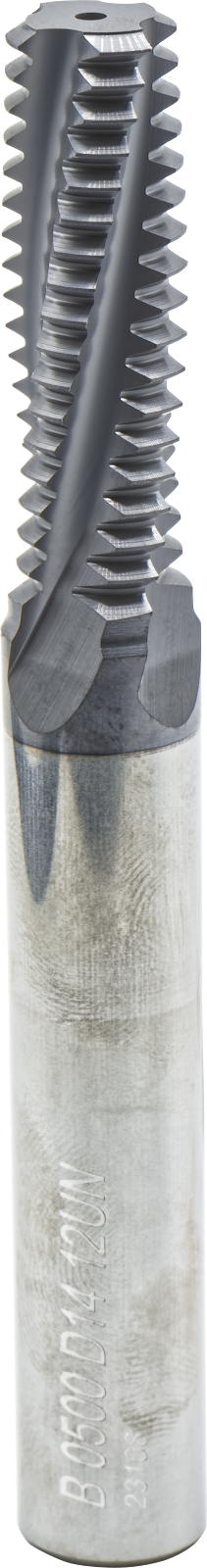

Carmex MTB0500D1412UNMT7
Specifications
| Number Of Flutes | 4 |
|---|---|
| Overall Length (Inch) | 4.0 in |
| Short Description | MTB 0500 D14 12 UN MT7 |
| Thread Standard | (9/16) |
| Material | Carbide |
| Shank Type | Cylindrical (DIN6535-HA) |
| Function | Threading |
| EIRL | Internal Right-Hand;Internal Left-Hand |
| Is Coated | Y |
| Shank Diameter (Inch) | (1/2) in |
| Thread Form | UN |
| Grade | MT7 |
| Pitch (TPI) | 12.00 TPI |
| Has Coolant | Y |
| Coolant Type | Central Bore |
| Cut Diameter (Inch) | 0.457 in |
| Country of Origin | IL |
