Carmex
MTR5R02L30BXC

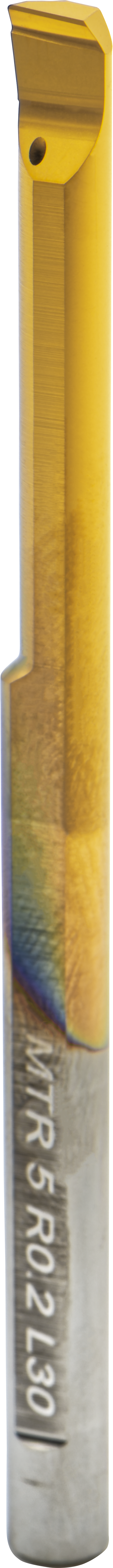

Carmex MTR5R02L30BXC
Specifications
| Shank Diameter (Inch) | 0.20 in |
|---|---|
| Overall Length (Inch) | 3.0 in |
| Short Description | MTR 5 R0.2 L30 BXC |
| Material | Carbide |
| Grade | BXC |
| Country of Origin | IL |
| Shank Type | Cylindrical (Weldon) |
| Centerline to Cutting Edge (in) | 0.080 in |
| Function | Boring |
| Radius (Inch) | 0.008 in |
| EIRL | Internal Right-Hand |
| Is Coated | Y |
| Holder Code | SIM…H5 |
| Radius (Metric) | 0.2 mm |
| Has Coolant | Y |
| Coolant Type | Edge Bore |
| Centerline to Cutting Edge (Metric) | 2.10 mm |
