Carmex
MTS08078C2315ISOMT7

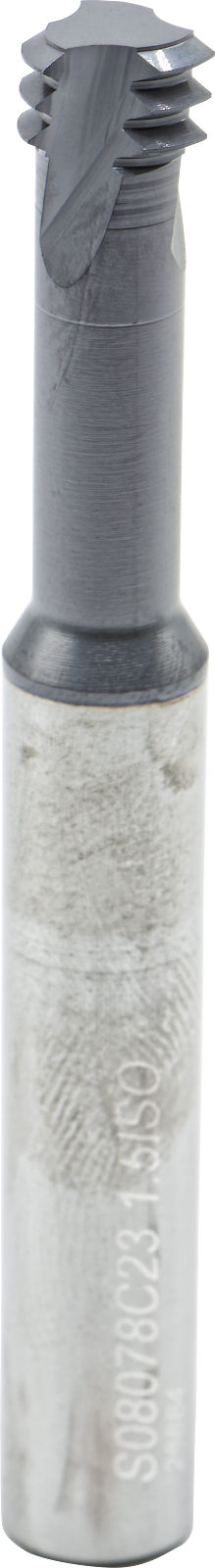

Carmex MTS08078C2315ISOMT7
Specifications
| Number Of Flutes | 3 |
|---|---|
| Overall Length (Inch) | 2.5 in |
| Short Description | MTS 08078 C23 1.5 ISO MT7 |
| Thread Standard | M10;M14;M16 |
| Material | Carbide |
| Shank Type | Cylindrical (DIN6535-HA) |
| Function | Threading |
| Pitch (Metric) | 01.50 mm |
| EIRL | Internal Right-Hand;Internal Left-Hand |
| Is Coated | Y |
| Shank Diameter (Inch) | 0.31 in |
| Thread Form | ISO |
| Grade | MT7 |
| Has Coolant | N |
| Cut Diameter (Inch) | 0.307 in |
| Country of Origin | IL |
| Thread Depth | 2.0 x D1 |
