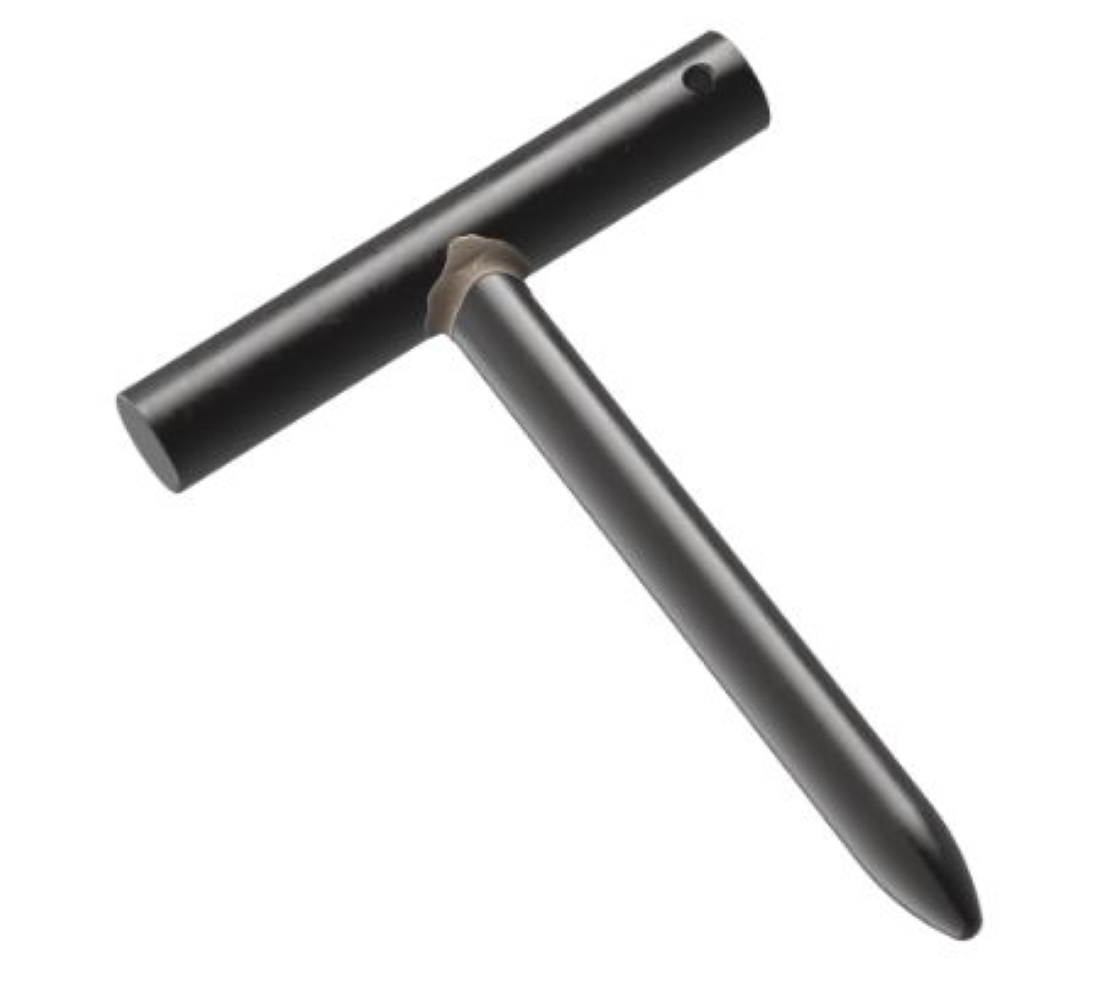

CL-23-TP Locating Pin, T-Pin
Specifications
| Short Description | T Pins are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA. |
|---|---|
| B | 4 |
| C | 2-1/2 |
| Pin Material | 1215 Steel, Black Oxide Finish |
| E | 1/4 |
| Included Products/Items | 1215 Steel, Heat Treat: Carburized-hardened, Black Oxide Finish |
