CARR LANE
CL-6-LP-C

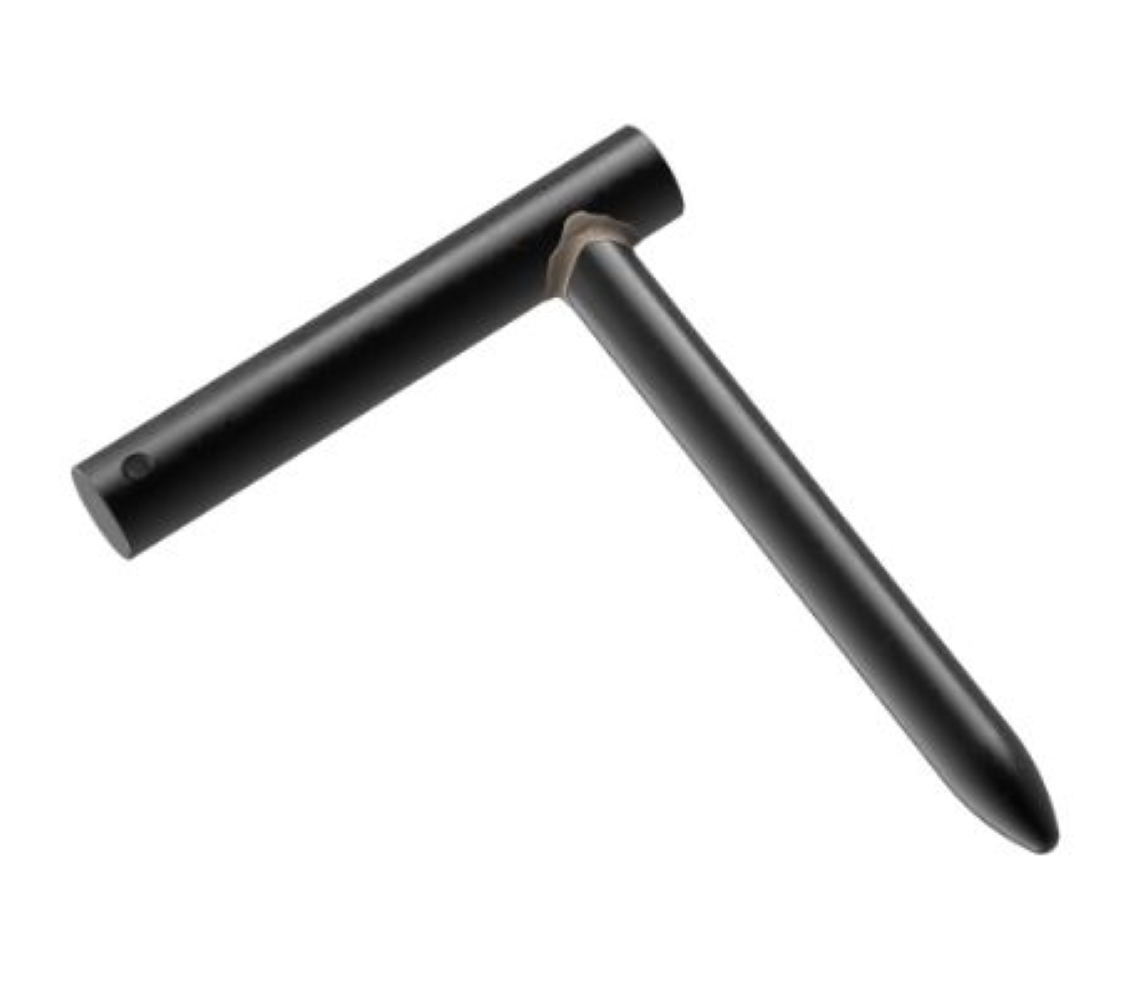

CL-6-LP-C Locating Pin, L-Pin w/ Cable Assembly
Specifications
| Short Description | L Pins are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. L shaped pins are available in pin diameters from 1/8 to 3/4", including some number and letter sizes (4 to 20mm in metric), most in a choice of several pin lengths. Made in USA. |
|---|---|
| B | 6 |
| C | 2-1/2 |
| Pin Material | 1215 Steel, Black Oxide Finish |
| E | 3/8 |
| Included Products/Items | 1215 Steel, Heat Treat: Carburized-hardened |
