Ceratizit
10105039

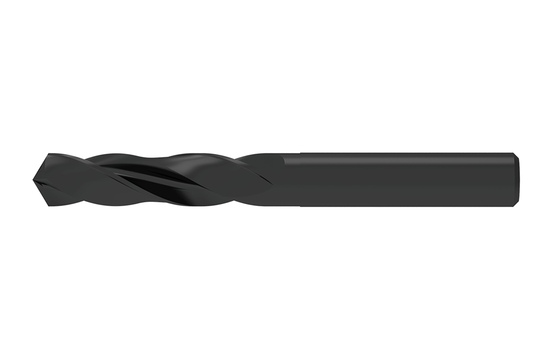

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 3.8 |
|---|---|
| Overall Length (Inch) | 2.17 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 55 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.15 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 33 |
| Width (Decimal) | 0.51 |
| Short Description | N.3,90.R.3D.DIN1897 VAP |
| Long Description | HSS TWIST DRILL N.3,90.R.3D.DIN1897 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.15 |
| Connection Diameter (Metric) | 3.8 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.4 |
| Protruding Length (Decimal) | 0.91 |
| Protruding Length (Metric) | 23 |
| Shank Length (Decimal) | 1.3 |
| Usable Length (Decimal) | 0.45 |
| Usable Length (Metric) | 11.4 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.87 |
| length chip flute (Metric) | 22 |
| Shank Length (mm) | 33.0 |
| Base Item Number | TYP_N |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.299 |
| Connection diameter machine side (inch) | 0.150 |
| length chip flute (Inch) | 0.866 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 3.8 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.018 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 3.80 mm |
| Item Length (Inches) | 2.40 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.449 |
| Cutting Diameter (Inch) | 0.150 |
