Ceratizit
10105066

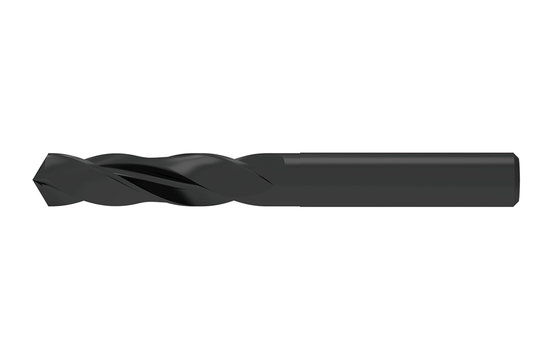

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 6.5 |
|---|---|
| Overall Length (Inch) | 2.76 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 70 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 0.26 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 39 |
| Width (Decimal) | 0.51 |
| Short Description | N.6,60.R.3D.DIN1897 VAP |
| Long Description | HSS TWIST DRILL N.6,60.R.3D.DIN1897 VAP |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.26 |
| Connection Diameter (Metric) | 6.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.99 |
| Protruding Length (Decimal) | 1.26 |
| Protruding Length (Metric) | 32 |
| Shank Length (Decimal) | 1.54 |
| Usable Length (Decimal) | 0.77 |
| Usable Length (Metric) | 19.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.22 |
| length chip flute (Metric) | 31 |
| Shank Length (mm) | 39.0 |
| Base Item Number | TYP_N |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.535 |
| Connection diameter machine side (inch) | 0.256 |
| length chip flute (Inch) | 1.220 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 6.5 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.037 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 6.50 mm |
| Item Length (Inches) | 2.99 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.768 |
| Cutting Diameter (Inch) | 0.256 |
