Ceratizit
10106125

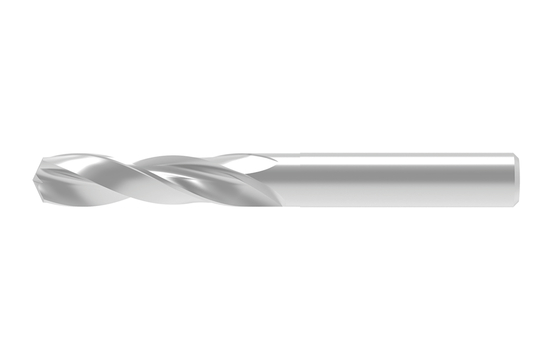

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 12.3 |
|---|---|
| Overall Length (Inch) | 4.02 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 102 |
| Material | HSS-E |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.49 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.71 |
| Shank Length (Metric) | 51 |
| Width (Decimal) | 0.71 |
| Short Description | WNX.12,50.R.3D.DIN1897 |
| Long Description | HSSE TWIST DRILL WNX.12,50.R.3D.DIN1897 |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.49 |
| Connection Diameter (Metric) | 12.3 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 4.25 |
| Protruding Length (Decimal) | 2.05 |
| Protruding Length (Metric) | 52 |
| Shank Length (Decimal) | 2.01 |
| Usable Length (Decimal) | 1.46 |
| Usable Length (Metric) | 36.9 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 2.01 |
| length chip flute (Metric) | 51 |
| Shank Length (mm) | 51.0 |
| Base Item Number | TYP_WNX |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 2.008 |
| Connection diameter machine side (inch) | 0.484 |
| length chip flute (Inch) | 2.008 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 12.3 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.168 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 1.23 cm |
| Item Length (Inches) | 4.25 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 1.453 |
| Cutting Diameter (Inch) | 0.484 |
