Ceratizit
10113036

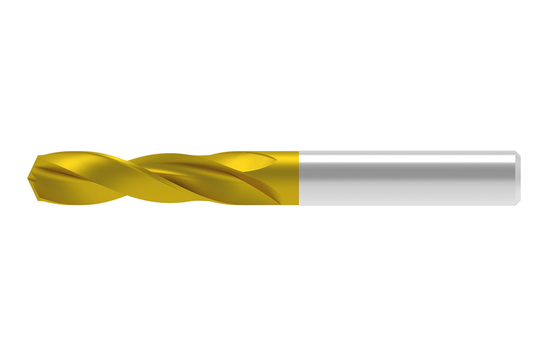

HSSE-PM TWIST DRILL
Specifications
| Diameter (Metric) | 3.5 |
|---|---|
| Type | Self Centering |
| Overall Length (Inch) | 2.05 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 52 |
| Material | HSS-E-PM |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.14 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 32 |
| Width (Decimal) | 0.51 |
| Short Description | UNI-PM.3,60.R.3D.DIN1897 TIN |
| Long Description | HSSE-PM TWIST DRILL UNI-PM.3,60.R.3D.DIN1897 TIN |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.14 |
| Connection Diameter (Metric) | 3.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.28 |
| Protruding Length (Decimal) | 0.83 |
| Protruding Length (Metric) | 21 |
| Shank Length (Decimal) | 1.26 |
| Usable Length (Decimal) | 0.42 |
| Usable Length (Metric) | 10.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.79 |
| length chip flute (Metric) | 20 |
| Shank Length (mm) | 32.0 |
| Base Item Number | TYP_UNI |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.260 |
| Connection diameter machine side (inch) | 0.138 |
| length chip flute (Inch) | 0.787 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 3.5 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E_PM |
| Item Weight (lbs) | 0.015 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 3.50 mm |
| Item Length (Inches) | 2.28 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.413 |
| Cutting Diameter (Inch) | 0.138 |
