Ceratizit
10130053

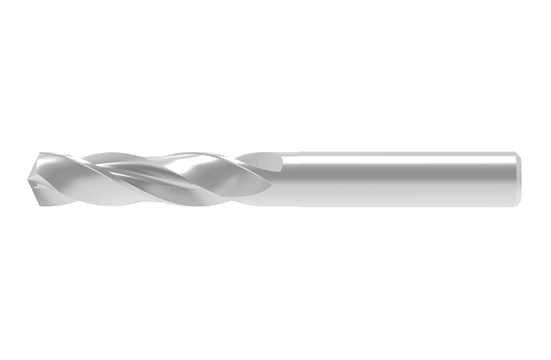

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 5.2 |
|---|---|
| Overall Length (Inch) | 2.45 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 62 |
| Material | HSS-E |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.21 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 36 |
| Width (Decimal) | 0.51 |
| Short Description | VA.5,30.R.3D.DIN1897 |
| Long Description | HSSE TWIST DRILL VA.5,30.R.3D.DIN1897 |
| Cutting Direction | Right |
| Length of Cut | 3XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.21 |
| Connection Diameter (Metric) | 5.2 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.68 |
| Protruding Length (Decimal) | 1.07 |
| Protruding Length (Metric) | 27 |
| Shank Length (Decimal) | 1.42 |
| Usable Length (Decimal) | 0.62 |
| Usable Length (Metric) | 15.6 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.03 |
| length chip flute (Metric) | 26 |
| Shank Length (mm) | 36.0 |
| Base Item Number | TYP_VA |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.205 |
| length chip flute (Inch) | 1.024 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 5.2 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.023 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 5.20 mm |
| Item Length (Inches) | 2.68 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.614 |
| Cutting Diameter (Inch) | 0.205 |
