Ceratizit
1016117000

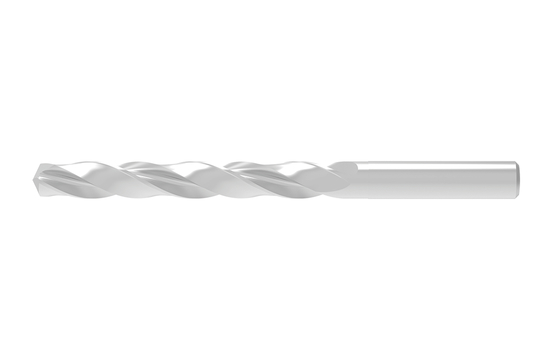

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 16.5 |
|---|---|
| Overall Length (Inch) | 7.25 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 184 |
| Material | HSS |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.65 |
| Number Of Flutes | 2 |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.87 |
| Shank Length (Metric) | 59 |
| Width (Decimal) | 0.87 |
| Short Description | W.17,00.R.5D.DIN338 |
| Long Description | HSS TWIST DRILL W.17,00.R.5D.DIN338 |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.65 |
| Connection Diameter (Metric) | 16.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 7.48 |
| Protruding Length (Decimal) | 4.97 |
| Protruding Length (Metric) | 126 |
| Shank Length (Decimal) | 2.33 |
| Usable Length (Decimal) | 3.25 |
| Usable Length (Metric) | 82.5 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 4.93 |
| length chip flute (Metric) | 125 |
| Shank Length (mm) | 59.0 |
| Base Item Number | TYP_W |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Length (Inch) | 2.323 |
| Connection diameter machine side (inch) | 0.650 |
| length chip flute (Inch) | 4.921 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.87 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 16.5 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.464 |
| Item Height (Inches) | 0.87 |
| Cutting Diameter (mm) | 1.65 cm |
| Item Length (Inches) | 7.48 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 3.248 |
| Cutting Diameter (Inch) | 0.650 |
