Ceratizit
10170025

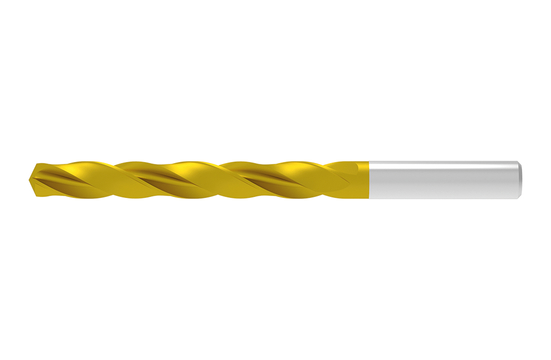

HSSE TWIST DRILL
Specifications
| Diameter (Metric) | 2.4 |
|---|---|
| Overall Length (Inch) | 2.25 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 57 |
| Material | HSS-E |
| Coating/Finish | TiN |
| Diameter (Inch) | 0.1 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Shank Length (Metric) | 27 |
| Width (Decimal) | 0.51 |
| Short Description | WTL.2,50.R.5D.DIN338 TIN |
| Long Description | HSSE TWIST DRILL WTL.2,50.R.5D.DIN338 TIN |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.1 |
| Connection Diameter (Metric) | 2.4 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance | H8 |
| Length (Decimal) | 2.48 |
| Protruding Length (Decimal) | 1.22 |
| Protruding Length (Metric) | 31 |
| Shank Length (Decimal) | 1.07 |
| Usable Length (Decimal) | 0.48 |
| Usable Length (Metric) | 12 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 1.19 |
| length chip flute (Metric) | 30 |
| Shank Length (mm) | 27.0 |
| Base Item Number | TYP_WTL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.063 |
| Connection diameter machine side (inch) | 0.094 |
| length chip flute (Inch) | 1.181 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 2.4 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.009 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 2.40 mm |
| Item Length (Inches) | 2.48 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 0.472 |
| Cutting Diameter (Inch) | 0.094 |
