Ceratizit
10224040

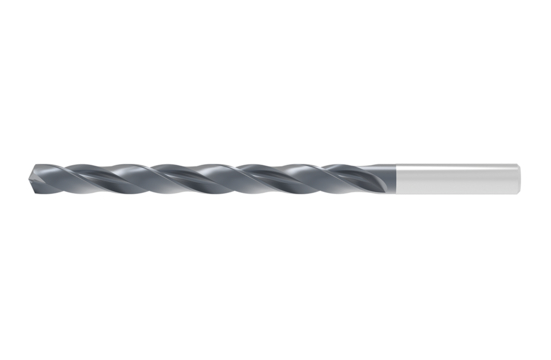

HSS TWIST DRILL
Specifications
| Coolant Fed | IC Central |
|---|---|
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 119 |
| Diameter (Inch) | 0.15 |
| Material | HSS |
| Diameter (Metric) | 3.8 |
| Overall Length (Inch) | 4.69 |
| Short Description | NC.4,00.R.10D.WN.IK TIALN |
| Long Description | HSS TWIST DRILL NC.4,00.R.10D.WN.IK TIALN |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 4.92 |
| Width (Decimal) | 0.51 |
| Cutting Direction | Right |
| Length of Cut | 10XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.15 |
| Connection Diameter (Metric) | 3.8 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 3.11 |
| Protruding Length (Metric) | 79 |
| Shank Length (Decimal) | 1.62 |
| Shank Length (Metric) | 41 |
| Usable Length (Decimal) | 1.5 |
| Usable Length (Metric) | 38 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 3.08 |
| length chip flute (Metric) | 78 |
| Base Item Number | TYP_NC |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 1.614 |
| Connection diameter machine side (inch) | 0.150 |
| length chip flute (Inch) | 3.071 |
| Coolant | IC_CENTRAL |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 3.8 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.029 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 3.80 mm |
| Item Length (Inches) | 4.92 |
| Shank Length (mm) | 41.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 1.496 |
| Cutting Diameter (Inch) | 0.150 |
