Ceratizit
10228147

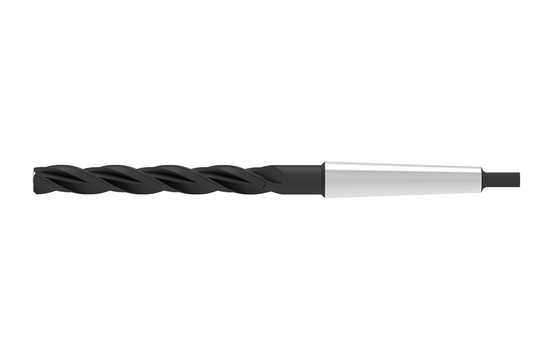

HSS CORE DRILL
Specifications
| Coating | VAP |
|---|---|
| Long Description | HSS CORE DRILL N.14,75.R.DIN343.MK2 VAP |
| Short Description | N.14,75.R.DIN343.MK2 VAP |
| Flute Helix Hand | LEFT |
| length chip flute (Inch) | 4.252 |
| Flute Count | 3 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.71 |
| Connection type machine side | MKG |
| Overall Length (mm) | 18.9 cm |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.308 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.71 |
| Morse Taper Adapter Size | 1 |
| Cutting Diameter (mm) | 1.40 cm |
| Item Length (Inches) | 7.68 |
| length chip flute (Metric) | 108.0 |
| Cutting Diameter Tolerance | h8 |
| Point Angle | 120 |
| Cutting Diameter (Inch) | 0.551 |
| Overall Length (Inch) | 7.441 |
