Ceratizit
10235078

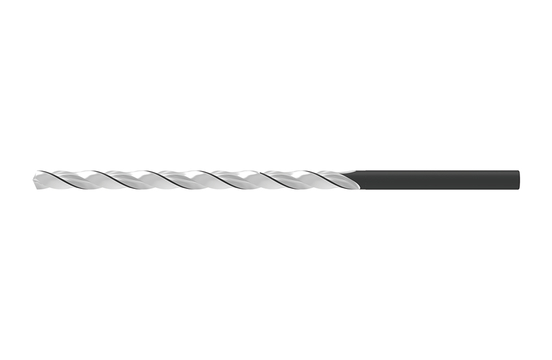

HSS TWIST DRILL, SERIES 1
Specifications
| Coolant Fed | Without IC |
|---|---|
| Coating/Finish | Bevel Nitrated |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 240 |
| Diameter (Inch) | 0.31 |
| Material | HSS |
| Diameter (Metric) | 7.7 |
| Overall Length (Inch) | 9.45 |
| Short Description | WTL-R1.7,80.R.10D.DIN1869 F.NIT |
| Long Description | HSS TWIST DRILL, SERIES 1 WTL-R1.7,80.R.10D.DIN1869 F.NIT |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 10 |
| Width (Decimal) | 0.51 |
| Cutting Direction | Right |
| Length of Cut | G10XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.31 |
| Connection Diameter (Metric) | 7.7 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 6.54 |
| Protruding Length (Metric) | 166 |
| Shank Length (Decimal) | 2.96 |
| Shank Length (Metric) | 75 |
| Usable Length (Decimal) | 3.04 |
| Usable Length (Metric) | 77 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 6.5 |
| length chip flute (Metric) | 165 |
| Base Item Number | TYP_WTL |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 2.953 |
| Connection diameter machine side (inch) | 0.303 |
| length chip flute (Inch) | 6.496 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 7.7 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.183 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 7.70 mm |
| Item Length (Inches) | 10.00 |
| Shank Length (mm) | 75.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 3.031 |
| Cutting Diameter (Inch) | 0.303 |
