Ceratizit
10245125

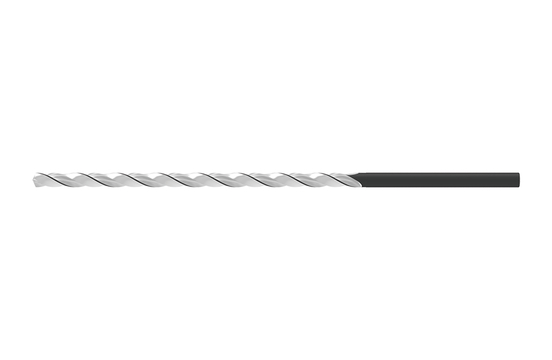

HSS TWIST DRILL, SERIES 2
Specifications
| Coolant Fed | Without IC |
|---|---|
| Coating/Finish | Bevel Nitrated |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 375 |
| Diameter (Inch) | 0.48 |
| Material | HSS |
| Diameter (Metric) | 12 |
| Overall Length (Inch) | 14.77 |
| Short Description | WTL-R2.12,50.R.10D.DIN1869 F.NIT |
| Long Description | HSS TWIST DRILL, SERIES 2 WTL-R2.12,50.R.10D.DIN1869 F.NIT |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.59 |
| Length (Decimal) | 15 |
| Width (Decimal) | 0.59 |
| Cutting Direction | Right |
| Length of Cut | G10XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 10.28 |
| Protruding Length (Metric) | 261 |
| Shank Length (Decimal) | 4.53 |
| Shank Length (Metric) | 115 |
| Usable Length (Decimal) | 4.73 |
| Usable Length (Metric) | 120 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 10.24 |
| length chip flute (Metric) | 260 |
| Base Item Number | TYP_WTL |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 4.528 |
| Connection diameter machine side (inch) | 0.472 |
| length chip flute (Inch) | 10.236 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.59 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 12.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.638 |
| Item Height (Inches) | 0.59 |
| Cutting Diameter (mm) | 1.20 cm |
| Item Length (Inches) | 15.00 |
| Shank Length (mm) | 115.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 4.724 |
| Cutting Diameter (Inch) | 0.472 |
