Ceratizit
1024607500

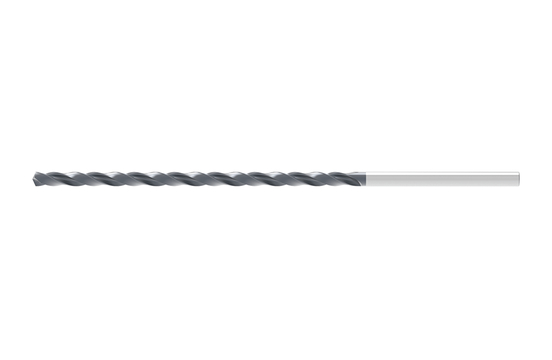

HSSE TWIST DRILL, SERIES 2
Specifications
| Coolant Fed | Without IC |
|---|---|
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 290 |
| Diameter (Inch) | 0.28 |
| Material | HSS-E |
| Diameter (Metric) | 7 |
| Overall Length (Inch) | 11.42 |
| Short Description | WTL-R2.07,50.R.10D.DIN1869 TIALN |
| Long Description | HSSE TWIST DRILL, SERIES 2 WTL-R2.07,50.R.10D.DIN1869 TIALN |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 11.42 |
| Width (Decimal) | 0.51 |
| Cutting Direction | Right |
| Length of Cut | G10XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.28 |
| Connection Diameter (Metric) | 7 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 7.92 |
| Protruding Length (Metric) | 201 |
| Shank Length (Decimal) | 3.55 |
| Shank Length (Metric) | 90 |
| Usable Length (Decimal) | 2.76 |
| Usable Length (Metric) | 70 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 7.88 |
| length chip flute (Metric) | 200 |
| Base Item Number | TYP_WTL |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Length (Inch) | 3.543 |
| Connection diameter machine side (inch) | 0.276 |
| length chip flute (Inch) | 7.874 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 7.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.174 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 7.00 mm |
| Item Length (Inches) | 11.42 |
| Shank Length (mm) | 90.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 2.756 |
| Cutting Diameter (Inch) | 0.276 |
