Ceratizit
10265100

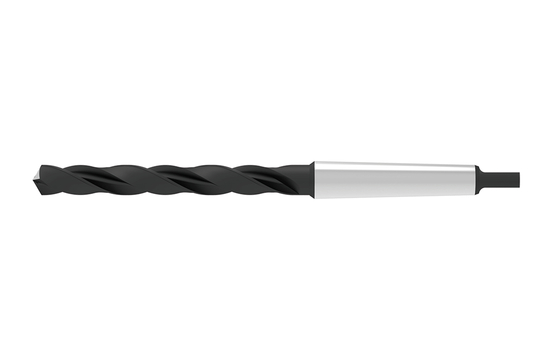

HSS TWIST DRILL
Specifications
| Coolant Fed | Without IC |
|---|---|
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 430 |
| Diameter (Inch) | 0.4 |
| Material | HSS-E |
| Diameter (Metric) | 10 |
| Overall Length (Inch) | 16.93 |
| Short Description | N.10,00.R.5D.DIN345.MK1 VAP |
| Long Description | HSS TWIST DRILL N.10,00.R.5D.DIN345.MK1 VAP |
| Unit Of Measure | Metric |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 16.93 |
| Width (Decimal) | 0.51 |
| Cutting Direction | Right |
| Length of Cut | G10XD |
| Point Angle | 130 degrees |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H8 |
| Diameter Tolerance | H8 |
| Protruding Length (Decimal) | 11.66 |
| Protruding Length (Metric) | 296 |
| Shank Length (Decimal) | 5.32 |
| Shank Length (Metric) | 135 |
| Usable Length (Decimal) | 3.94 |
| Usable Length (Metric) | 100 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 11.62 |
| length chip flute (Metric) | 295 |
| Base Item Number | TYP_N |
| Connection Type | CYL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Length (Inch) | 5.315 |
| Connection diameter machine side (inch) | 0.394 |
| length chip flute (Inch) | 11.614 |
| Coolant | WITHOUT_IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10.0 |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS_E |
| Item Weight (lbs) | 0.457 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 1.00 cm |
| Item Length (Inches) | 16.93 |
| Shank Length (mm) | 135.0 |
| Cutting Diameter Tolerance | h8 |
| Usable length (Inch) | 3.937 |
| Cutting Diameter (Inch) | 0.394 |
