Ceratizit
10265310

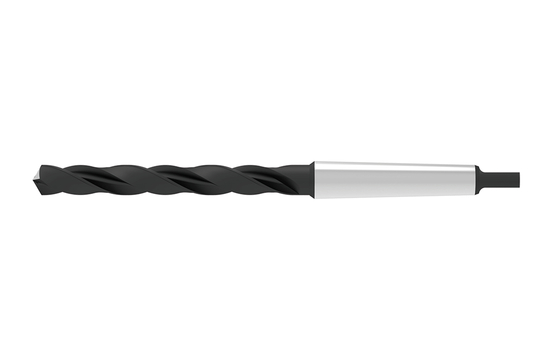

HSS TWIST DRILL
Specifications
| Diameter (Metric) | 30.5 |
|---|---|
| Overall Length (Inch) | 11.85 |
| Overall Length (Metric) | 301 |
| Material | HSS |
| Coating/Finish | VAP |
| Diameter (Inch) | 1.21 |
| Number Of Flutes | 2 |
| Unit Of Measure | Metric |
| Height (Decimal) | 1.42 |
| Width (Decimal) | 1.42 |
| Short Description | N.31,00.R.5D.DIN345.MK3 VAP |
| Long Description | HSS TWIST DRILL N.31,00.R.5D.DIN345.MK3 VAP |
| Cutting Direction | Right |
| Length of Cut | 5XD |
| Point Angle | 118 degrees |
| Connection Diameter Tolerance | H8 |
| Connection Type | MKG |
| Diameter Tolerance | H8 |
| Length (Decimal) | 12.09 |
| Morse Taper Adapter Size | 3 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 7.09 |
| length chip flute (Metric) | 180 |
| Base Item Number | TYP_N |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| length chip flute (Inch) | 7.087 |
| Item Width (Inches) | 1.42 |
| Connection type machine side | MKG |
| Connection diameter machine side tolerance | h8 |
| Base Material | HSS |
| Item Weight (lbs) | 0.162 |
| Item Height (Inches) | 1.42 |
| Cutting Diameter (mm) | 3.05 cm |
| Item Length (Inches) | 12.09 |
| Cutting Diameter Tolerance | h8 |
| Cutting Diameter (Inch) | 1.201 |
